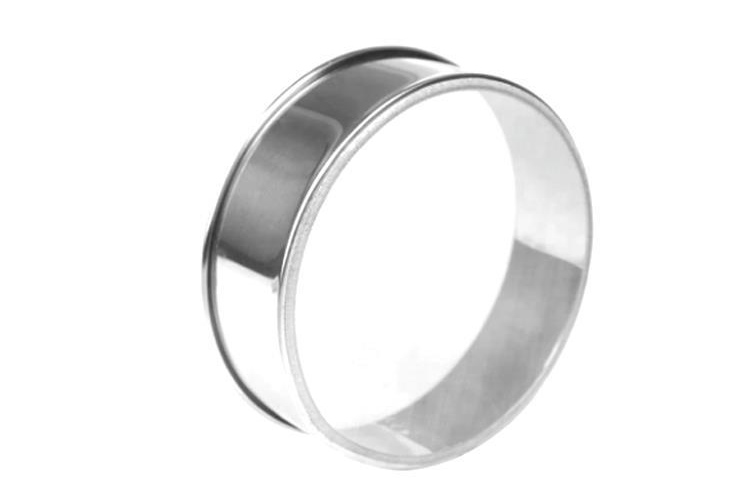

Standard Test Sieve electroforming screen

Monday February-24 2025  16:52:25

Electroforming screen is also called micro-plate screen. It is produced by electrochemical method with the highest precision. In theory, the precision can reach 1 micron, and each mesh can be within the average error range, which is in line with ISO international standards. standard.

However, due to the extremely fine meshes of the electroforming screen, the screen is fragile and easy to crack, and the production process is complicated and expensive; it is suitable for laboratory fine powder inspection and inspection.

what are the advantanges of standard Test Sieve electroforming screen?

1. The mesh is precise and meets the specified standards, and the inspection certificate can be provided;

2. The flat mesh surface ensures the free flow of the sample;

3. The fine screen is supported by a hollow frame to reduce the damage of the mesh surface;

4. The edge of the screen frame is curled for safe operation;

5. Precision framework with consistent nestability;

6. The frame has good sealing performance, and there is no gap to lose material.

What is the ASTM standard for Standard Test Sieve electroforming screen?

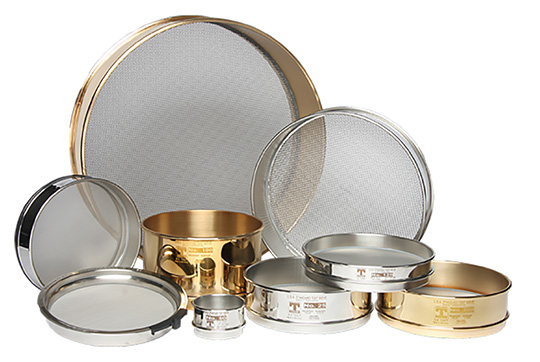

ASTM Test Sieve:

Features: Available in a variety of mesh sizes, the frame and mesh can be made of stainless steel, brass, or a combination of the two.

Applicable Standards: Meets ASTM E11 and AASHTO M92 requirements.

Dimensions: Frame diameter and full-height or half-height configurations depend on sample volume and particle size.

ASTM Supplemental Sieve:

Features: Meets ASTM E11 standards, including a range of new test sieve opening sizes (supplemental sizes).

Material: Stainless steel cloth mounted in traditional 3-inch, 8-inch, and 12-inch diameter stainless steel frames.

ASTM Precision Electroformed Sieve:

Features: Available in a variety of opening sizes, with accuracy up to ±2um, suitable for very fine powders.

Material: The mesh is formed by nickel electrodeposited onto a precisely sized mesh.

Specifications Conformed: Meets ASTM E161, ISO 565, and ISO 3310-3 requirements, with a certificate of compliance.

Classification of standard test sieve electroformed sieve

Product data information:

Mesh Type: Electroforming Screen

Pore ​​size: >1 micron

Frame Material: Stainless Steel

Application: Only suitable for a small amount of fine powder analysis and inspection, suitable for chemical, pharmaceutical and other fields

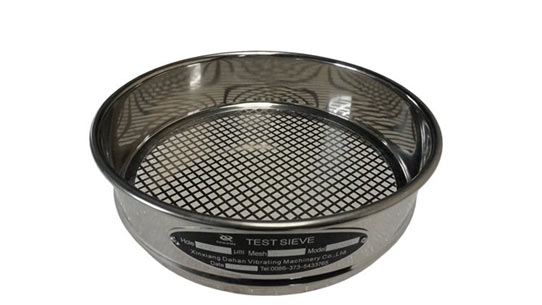

Dahan Machinery offers a wide range of standard test sieves designed for laboratory and manufacturing applications. Our test sieves meet all national and international standards including ISO and ASTM and can also be used in a variety of applications including petroleum, pharmaceuticals, sand, soil, paint, chemical feed, food, coal, agricultural products, seeds, plants, transfer materials, metal powders, fertilizers, glass, building materials, resins, etc. Dahan Machinery produces many types of sieves, including electroformed sieves.

What size are Standard Test Sieve electroforming screens?

All opening sizes can be manufactured in microns, from 2um to 2000um.

Tolerance is ±2um.

Hole shapes: square, round, oval, hexagonal or custom.

Fits all standard inch and metric ring diameters.

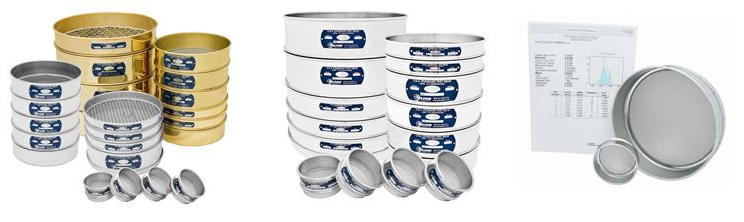

All sieves come with a certificate of authenticity and bar chart.

Certified to ASTM E-161, IOS 3310-3, ANSI B74.16, FEPA and JIS Z 8801 -3:2000 standards.

RoHS certified

Standard and Ultra Precision Electroformed Sieves
