What is vibrating sifter?

The vibrating sifter is used for separation and size determination of particles for granules, powders and even liquid products.

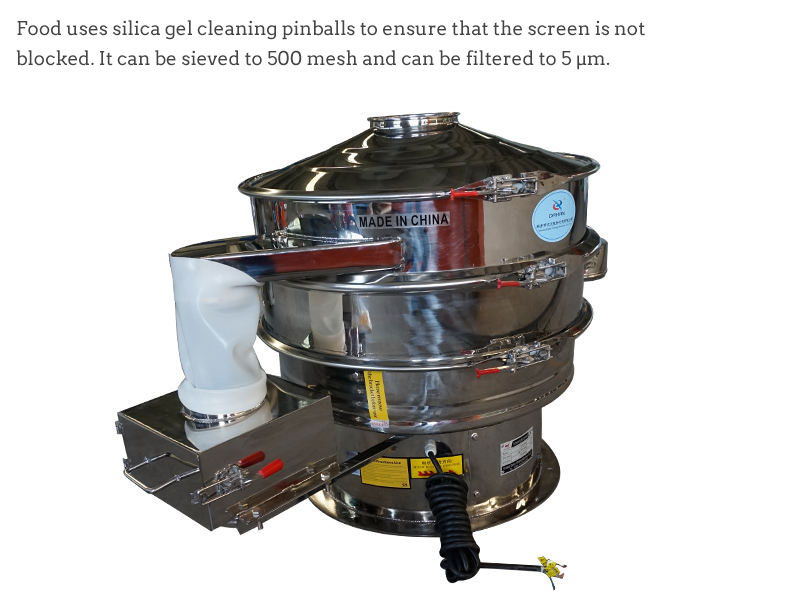

The vibrating sifter transmits the vibration of the motor to the screen to drive the material to move. The material is intercepted by multiple layers of screens with different meshes. The materials that meet the specifications pass through, and those that do not meet the specifications are intercepted above the screen. The screen size of the vibrating sifter can be configured arbitrarily, the screening fineness can reach 500 mesh (28 μm), and the filtration fineness can reach 5 μm, without dust flying and mesh clogging.

Types of vibrating sifter to explore

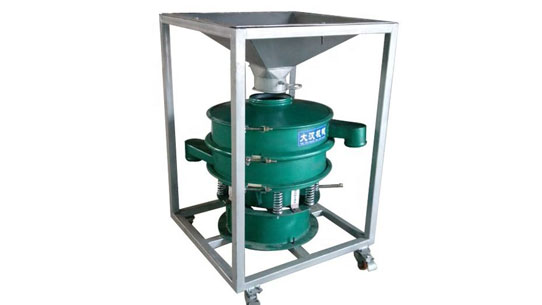

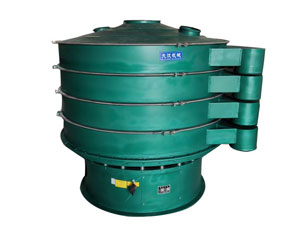

Carbon Steel Sieving Machine

The most common Sieving Machine is suitable for screening and impurity removal of common materials without special requirements and without corrosiveness.

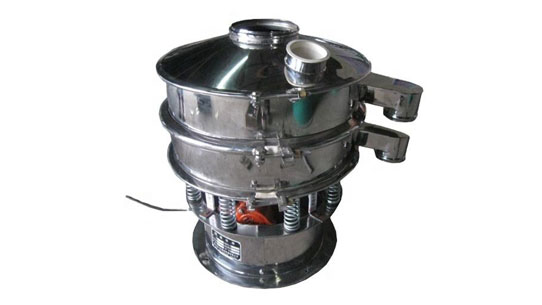

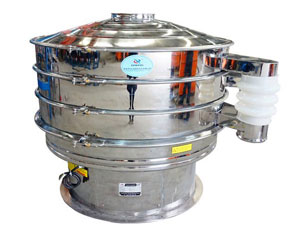

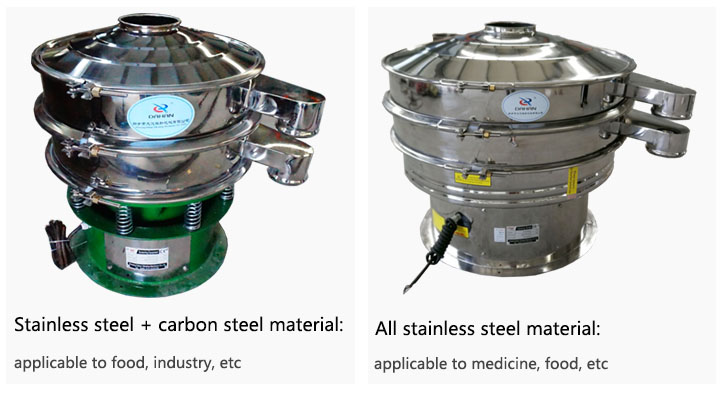

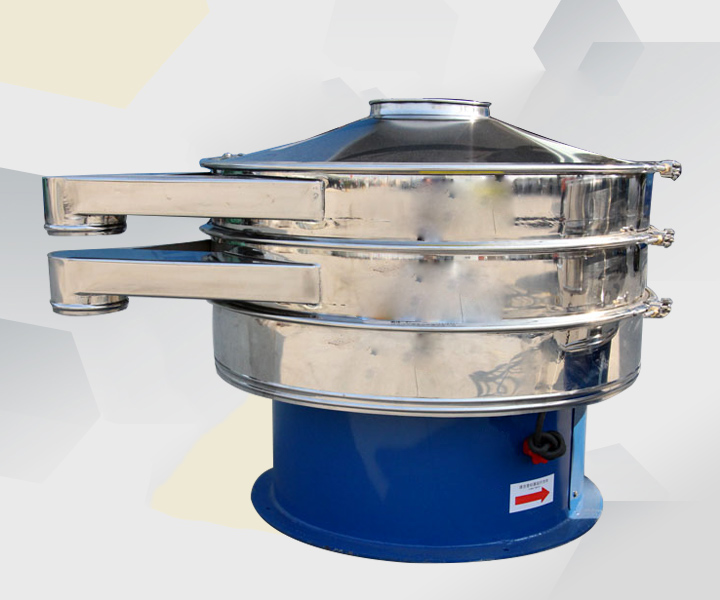

Stainless Steel Sieving Machine

Usually made of 304 or 316L stainless steel, it is suitable for corrosive or hygienic materials, usually used in the fields of medicine, food and chemical industry.

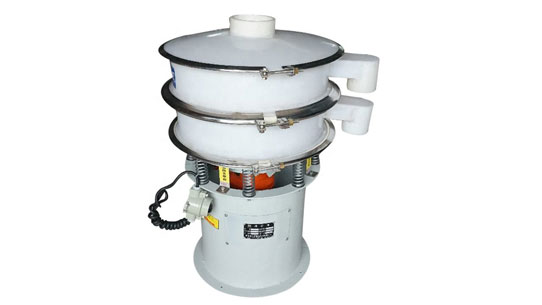

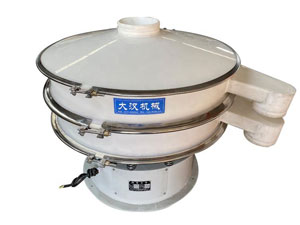

PVC Plastic Sieving Machine

It also has the characteristics of corrosion resistance, suitable for processing some materials that are corrosive and cannot easily react with metals, and has relatively low price and weight.

FEATURES

Improve your product purity

Eliminate oversized material from your powders and liquid

Increase your production

These vibratory screen achieve a higher throughput per unit mesh area compared to conventional vibrating screens

Reduce your down-time

Can be easily stripped down and cleaned without tools

Enclosed screening means total containment

Tight welding and sealing ring connection to avoid material leakage

Fits into smaller spaces

These vibrating screens can fit easily into existing installations and areas of limited headroom

Lowers noise levels

A solid rubber suspension gives the machine a quiet operation - typically as low as 70dBA

working principle

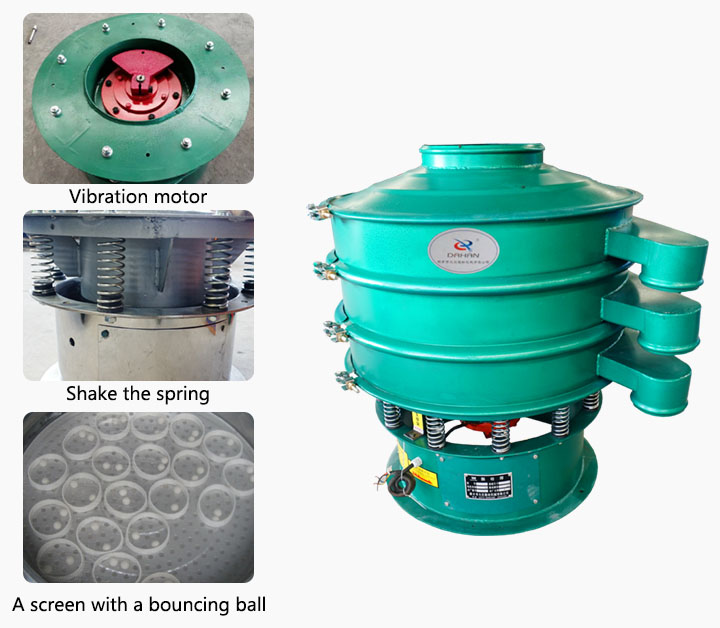

The vibrating sifter uses a vertical motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric weights, which can convert the rotation of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transfer this motion to the screen Surface, make the material on the screen surface expand and involute outward movement. By adjusting the phase angle of the eccentric weight at the upper and lower ends of the motor, the movement trajectory of the material on the screen surface can be changed, so that the material can be finely screened. , Probability screening, etc.

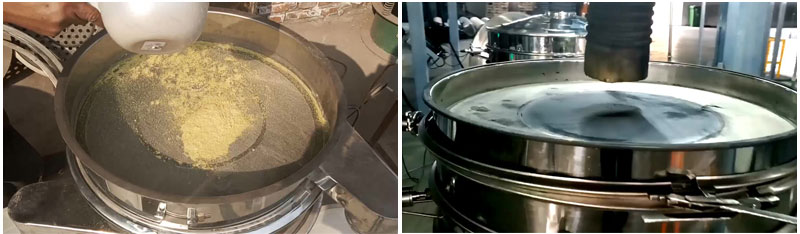

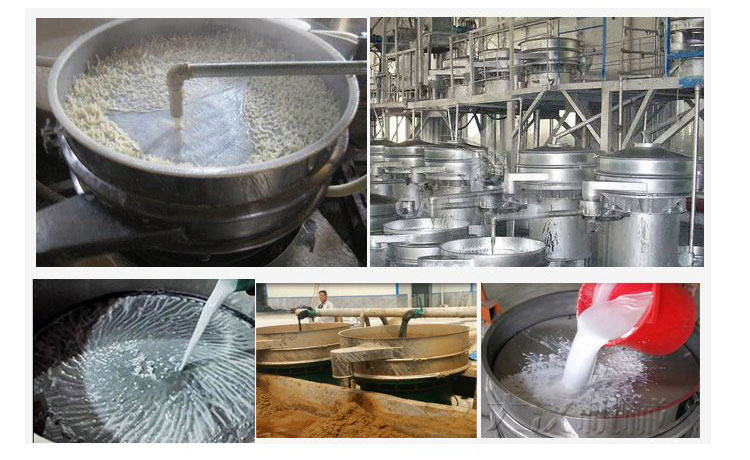

The use and collocation of vibrating sifter

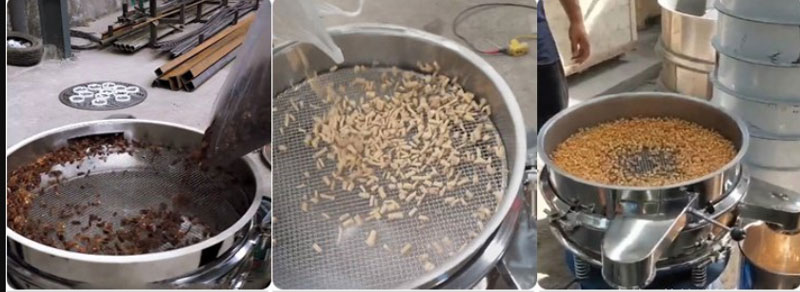

vibrating sifter sieving soil

vibrating sifter for sifting corn kernels

vibrating sifter filter slurry impurities

APPLICATION

Vibrating sifter is a refined screening equipment, which is used to classify bulk materials according to size, remove impurities, filter liquid, etc. It can be used in various industries such as food, medicine, environmental protection, chemical industry, agriculture, building materials, etc. With the advantages of strong processing power and small footprint, it can match your production line.

Particle classification:

Powder sieving:

Slurry Filtration:

Technical parameters

Model	Diameter mm	Screen area m	Screen size（mesh）	Feeding granularity mm
DH-600	Φ600	0.24	2-500	<Φ10
DH-800	Φ800	0.45	2-500	<Φ15
DH-1000	Φ1000	0.67	2-500	<Φ20
DH-1200	Φ1200	1.0	2-500	<Φ30
DH-1500	Φ1500	1.6	2-500	<Φ30
DH-1800	Φ1800	2.43	2-500	<Φ30
DH-2000	Φ2000	3.01	2-500	<Φ30
