Dimensions for Soil Sieve

Tuesday March-11 2025  13:48:22

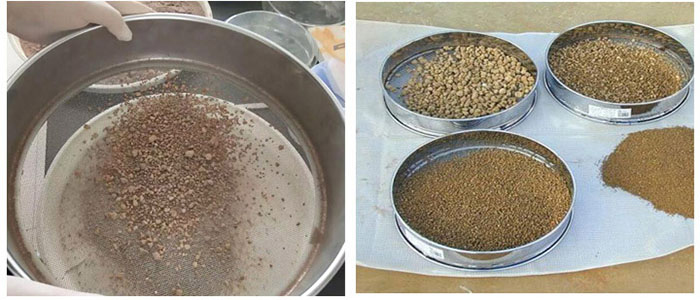

Reading instructions: Soil Sieve in this article is mostly used for the analysis of laboratory soil samples.

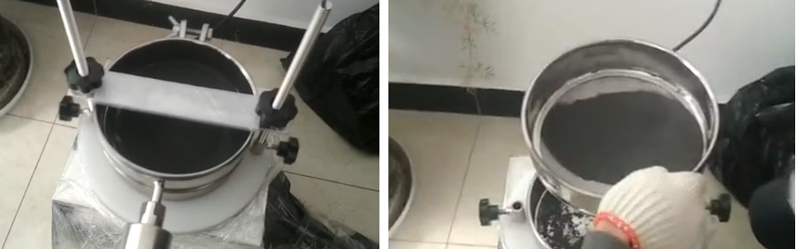

Soil Sieve video

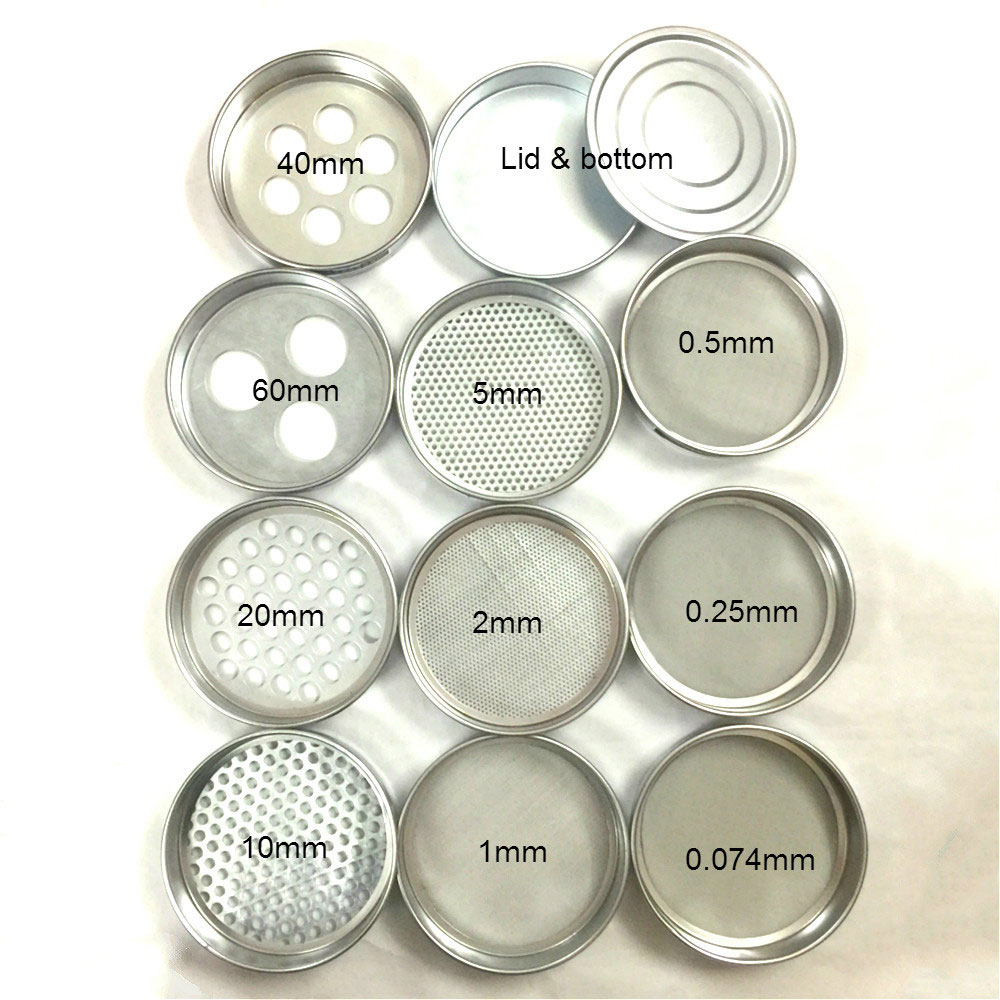

Screen surface diameter of Soil Sieve

The standard size of Soil Sieve is 200mm. According to the actual sample screening requirements, special size types such as 75mm, 100mm, and 300mm can be provided. The sieve frames of different sizes are all integrally formed, and the same set of sieve frames of the same size has consistent reliability. Nesting.

There is no need to worry that the sieve frames of different sizes cannot be fixed on the test sieve machine, you can choose to design an adjustable gripper on the test sieve machine for adjustable fixing.

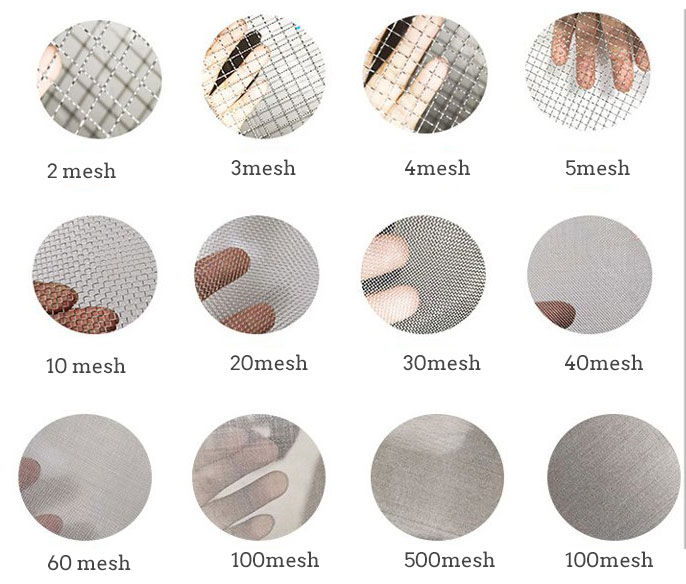

Soil Sieve mesh size

The aperture and mesh number of Soil Sieve are in one-to-one correspondence, but they are inversely proportional. The smaller the mesh number, the larger the mesh aperture; the larger the mesh number, the finer the mesh aperture. Aperture refers to the size of Soil Sieve sieve, and mesh refers to the opening ratio of Soil Sieve per unit area. Most fine soil samples use a sieve aperture between 0.075-2mm, and soil samples with larger particle sizes can use a sieve aperture between 2-100mm.

Dimensions for Soil Sieve size chart

Sieve sizes are categorized by mesh size and opening diameter. Here is a quick reference to sieve sizes commonly used in soil analysis:

How to choose the right soil sieve and mesh size?

①Determine the type of material being used and describe the particle size required

②Understand the specific requirements of the product

③Understand the regulatory standards that the job needs to comply with

Also, consider the wire diameter when choosing a sieve, as it affects the accuracy and durability of the sieve. Remember that each material has an ideal mesh size for best results. For coarse aggregates such as gravel, you will need a sieve size ranging from 75 mm (3 inches) (for larger stones) to No. 4 (4.75 mm) or even finer than No. 200 (0.075 mm), depending on the specification. For cement, which has a much smaller particle size, you will need a smaller sieve with mesh as fine as No. 325 (0.045 mm) or even smaller.

How to check soil sieve size?

Whether in a sieving machine or in manual sieving techniques, sieves are subjected to heavy use. Sample loads can cause the woven wire mesh to deform, and wear can cause the wire mesh diameter to decrease, which can expand the opening beyond acceptable limits. There are other options for continually verifying the accuracy and consistency of sieves:

① Used sieves can be revalidated to maintain the status of certified inspection and calibration sieves

② Master matching sieves are first inspected to inspection grade requirements and then compared by performance testing

③ Standard reference materials are precisely sized powders or glass beads used to test the performance of sieves and calculate the effective opening size

④ Sieve inspection tools can be used to directly measure the mesh size of the sieve openings and carefully inspect for damage.

Soil Sieve Specification
