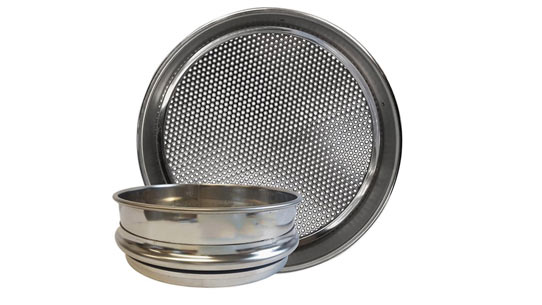

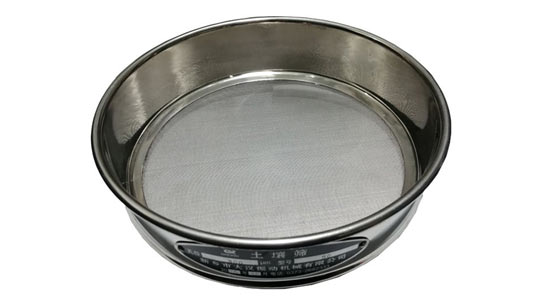

Standard sieving equipment for laboratory soil sample testing, in line with ISO6106 standard.
Mesh diameter: 75mm, 100mm, 200mm, 300mm

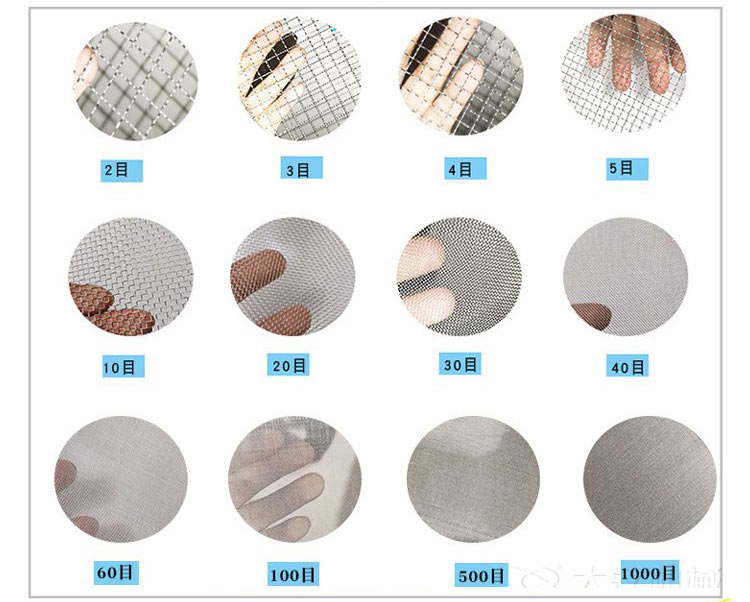

Aperture: 0.075mm-60mm (0.075mm-1mm is stainless steel wire mesh, 2mm or more is galvanized punching plate)
Number of pieces: 11 screens plus a set of bottom covers (12 in total), respectively: 0.075mm, 0.1mm, 0.25mm, 0.5mm, 1mm, 2mm, 5mm, 10mm, 20mm, 40mm, 60mm

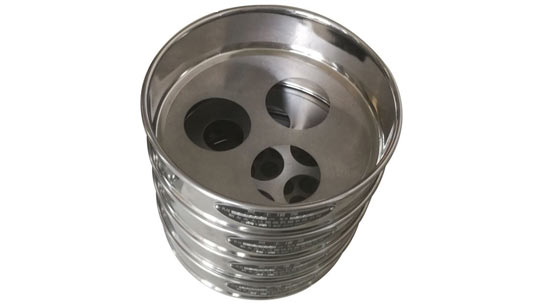

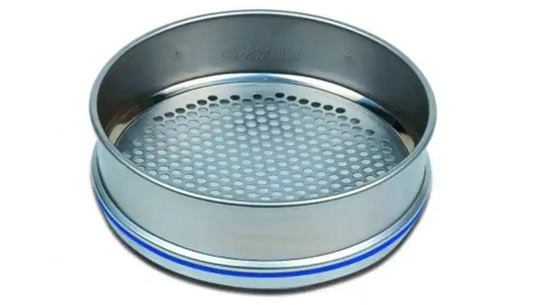

Hole type: square hole, round hole, diamond hole
Material: brass, stainless steel, galvanized, etc.
1. The opening of the mesh surface is uniform and the opening rate is high;
2. Consistent mesh, smooth edges, no damage to samples;
3. The mesh surface is flat and the soil samples can flow freely;
4. The edge curling design of the screen frame ensures safe operation;
5. Precise framework, consistent nestability.
It is mainly used in the laboratory for particle size analysis and distribution detection of soil samples;
In addition, if necessary, Soil Sieve Test can also be used to screen potting soil.
| NO. | Name | Unit | Parameter |
| 1 | frame diameter | mm | φ200 |
| 2 | the number of layer | s | 1~8 |
| 3 | sieve size | mm | 0.025-3 |
| 4 | vibrating amplitube | mm | 1~4 |
| 5 | vibration frequency | n/min | 1440 |
| 6 | power supply | V;HZ;KW | 220;50;0.12 |
| 7 | outside dimension | LWH | 350*350*(300+n*56) |
| 8 | machine weight | kg | 36 |
| 9 | time alarm | s | 999 |
| 10 | noise | db | Less than 50 |
Square hole sandstone screen: 0.075/0.15/0.3/0.6/1.18/2.36/4.75/9.5 bottom cover, a total of 9 pieces;
Round hole gravel screen: 0.08/0.16/0.315/0.63/1.25/2.5/5/10/bottom cover, a total of 9 pieces;
Square hole stone sieve: 2.36/4.75/9.5/16/19/26.5/31.5/37.5/53/63/75/90/bottom cover, 13 in total;
Round hole stone sieve: 2.5/5/10/16/20/25/31.5/40/50/63/80/100/bottom cover, 13 in total;
Round hole soil sieve test: 0.074/0.25/0.5/1/2/5/10/20/40/60/bottom cover, 11 in total;
Asphalt aggregate screen:
0.075/0.15/0.3/0.6/1.18/2.36/4.75/9.5/13.2/16/19/26.5/31.5/37.5/53/bottom cover, 16 pieces in total.
Note: 0.074mm-1mm is a stainless steel screen, and 2mm or more is a galvanized punching plate
Common aperture: 0.074mm, 0.25mm, 0.5mm, 1mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 13mm, 20mm, 40mm, 60mm, other specifications can be customized, Please contact us directly.
