What is a Ultrasonic Sieving Machine?
Friday March-10 2023 14:43:23
What is a Ultrasonic Sieving Machine?
Ultrasonic vibrating screen is to convert 220v, 50HZ or 110v, 60HZ electrical energy into 38KHZ high frequency electrical energy, input ultrasonic transducer, it into 38KHZ mechanical vibration, so as to achieve the purpose of efficient screening and network cleaning.

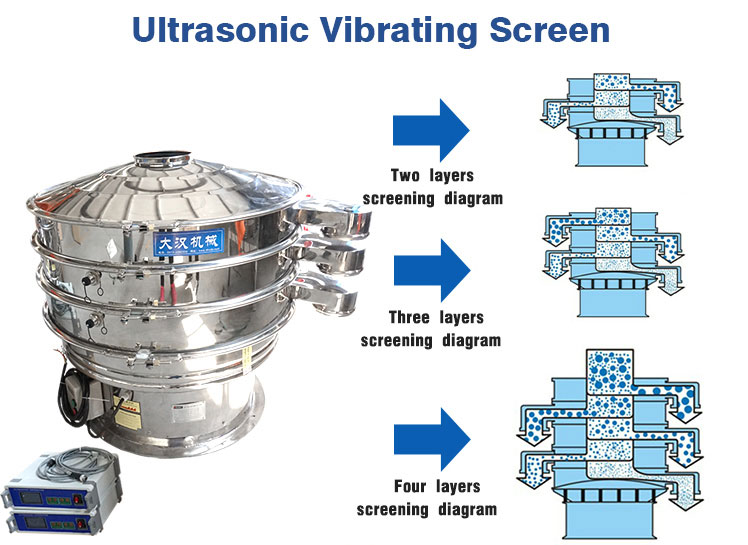

Ultrasonic vibrating screen can be regarded as in the traditional vibrating screen based on the introduction of a low amplitude, high frequency of ultrasonic vibration wave (mechanical wave) in the screen screen above superimposed a high frequency and low amplitude of ultrasonic vibration instrument, ultrafine powder to accept huge ultrasonic acceleration, so that the material on the screen surface always maintain suspension state, So as to inhibit adhesion, friction, leveling, and other factors blocking the network. To solve the strong adsorption, easy agglomeration, high electrostatic, high fine, high density, light gravity screening problems, especially suitable for the need to deal with high quality, fine powder users.
Ultrasonic technical parameters

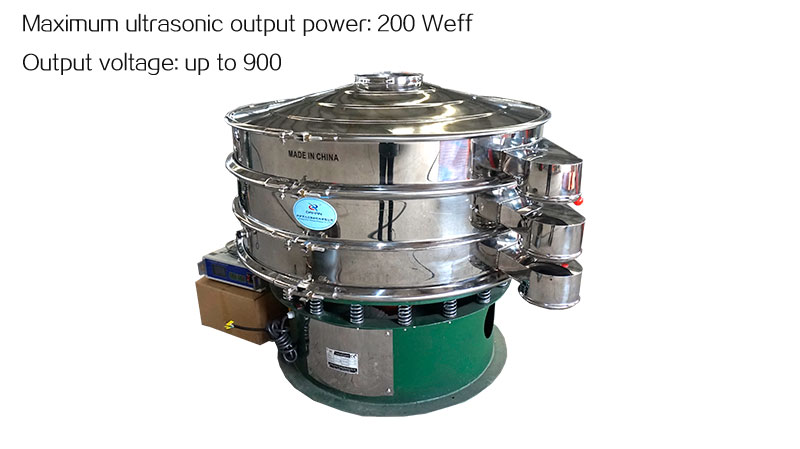

Maximum ultrasonic output power: 200 Weff
Output voltage: up to 900 Veff
Maximum output current: 1 A (limited current)
Fuse: 100-120 V: 2 x 2.5 A slo blo
200-240 V: 2 x 1.25 A slo blo
Working mode: Continuous working mode - 100% duty cycle pulsating working mode 1Hz modulation
50% duty cycle factor
Pulsating operating mode -10Hz modulation
70% duty cycle factor
Protection level: IP65
Pollution level: 2
Ambient temperature: -10-35℃
