Ultrasonic Vibrating Screen machine accessories and options
Monday February-20 2023 12:17:17
Motor
Traditional motors are three-phase motors. If the material to be screened is special and prone to static electricity or even explosion, you can choose an explosion-proof motor with better sealing performance, which will not generate electric sparks during operation, so as to ensure the safety of screening and the safety of the working environment of production personnel. .
Support grid
The selection of the support grid is determined according to the screen surface area of the Ultrasonic Vibrating Screen. The small screen surface can choose the ring support grid, and the large screen surface area can choose the concentric circular support grid. Compared with the ring grid, the concentric circular grid has a horizontal support structure, which can better support and level the screen and avoid damage to the large area of the screen.
Screen Box Collar
The standard Ultrasonic Vibrating Screen upper and lower screen frame tie rings are two semicircular metal rings fixed and tightened by screws to stabilize the screen box.
You can choose quick loading and unloading of the tie ring, and you only need to open and close the movable buckle to complete the replacement of the screen or disassemble the screen frame, which is a faster and more time-saving design.

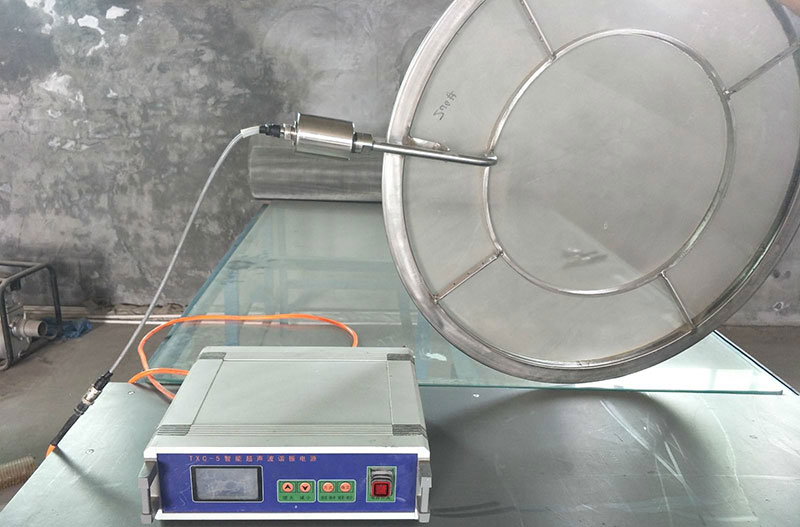

Ultrasonic transducer
Ultrasonic vibrating sieve with internal displacement sensor: sieving non-corrosive ordinary powdery materials, difficult to clean, high breakage rate, and low price;
Ultrasonic vibrating screen with external displacement sensor: suitable for all powdery material screening occasions, not easy to damage, easy to clean, and high price.
Sealing ring
The rubber sealing ring is used in ordinary screening of materials that have no special requirements for hygiene.
The silicone sealing ring is cleaner and hygienic, and it is of food and medical grade, non-toxic. When your screening products have strict hygiene requirements, choose a silicone sealing ring, and the silicone sealing ring is usually used with the Ultrasonic Vibrating Screen made of 304 or 316L.
