Airflow screening machine for activated carbon powder processing
Tuesday February-28 2023 10:18:38
Material form: powdered activated carbon
Material processing flow: coconut shell/nut shell/charcoal—pretreatment—grinding—carbonization—activation—cooling—grinding—screening—packaging—finished product
Powdered activated carbon particle size: 50-300 mesh
Product Features/Handling Difficulties:
Powdered activated carbon is light and fine, and the screening effect of ordinary vibrating sieve equipment is poor.
Recommended equipment:

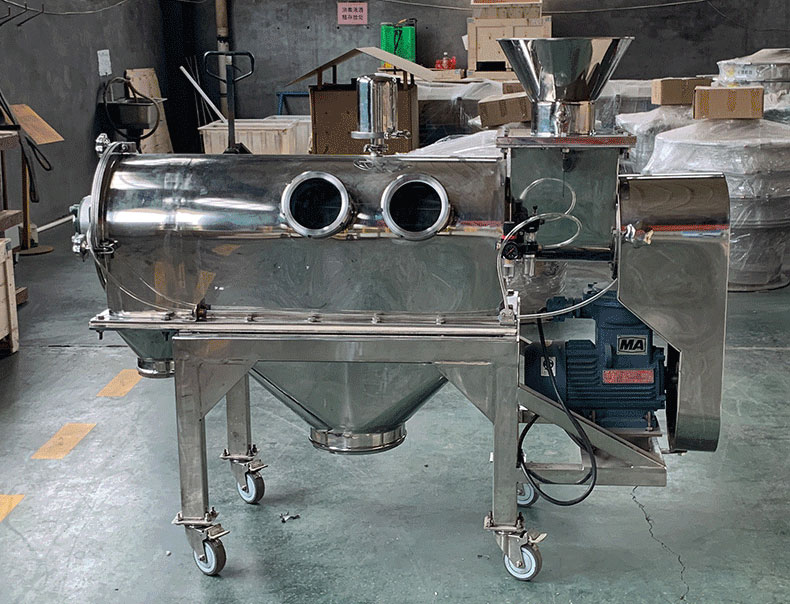

1. Airflow screening machine
Airflow screening machine is different from the vibrating screen. The special wind system can let the activated carbon powder that meets the specifications spray through the screen. It has high efficiency and large output (up to 12 tons/hour), and the activated carbon powder has a higher penetration rate and finer screening.
At the same time, because the activated carbon powder is in a floating atomized state in the sieve box under the wind force, there will be no friction, so the possible production accidents are also minimized.

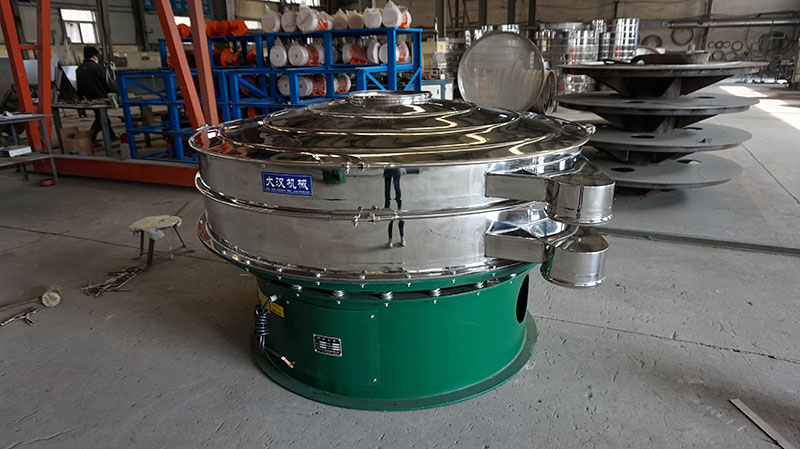

2. Ultrasonic vibrating screen
The ultrasonic vibrating screen is equipped with an ultrasonic system that can generate 36,000 times/min of high-frequency vibration, which can quickly pass the activated carbon powder through the screen without static electricity and adhesion. Compared with ordinary vibrating screens, the output can be increased by 2-5 times. And the fully sealed design and explosion-proof motor make the production safer.
Features
1. It can ensure the uniform specification of activated carbon after screening.
2. Fully sealed design to avoid carbon powder flying during the screening process.
3. The operation is simple, and it can be screened with the activated carbon production line.
