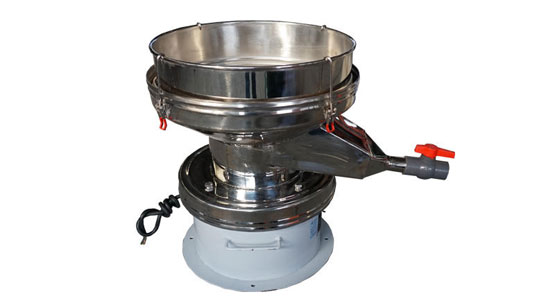

What is 450 filter sieve？

The 450 filter sieve is a small size that can be used for home/workshop or small amount of liquid for filtration. It can pass through the interception of the screen, realize the separation of liquid and solid, and complete the electric filter machine of product filtration.

450 filter sieve filtering ability:

Juice: 5 tons/hour

Cold pressed oil: 1 ton/hour

Flour: 700kg/hour

Product advantages

1. The single-layer screen has a high penetration rate, and the single-layer screen is equipped with a motor for large vibration.

2. The large-diameter discharge port has a fast discharge speed and is not prone to blockage.

3. The motor adopts IP54 waterproof motor, safe and reliable

4. Single-layer sieving and filtering, can process materials within 400 mesh

5.The weight of the machine is less than 50kg, light and compact, easy to move, and flexibly adapt to the production space and site.

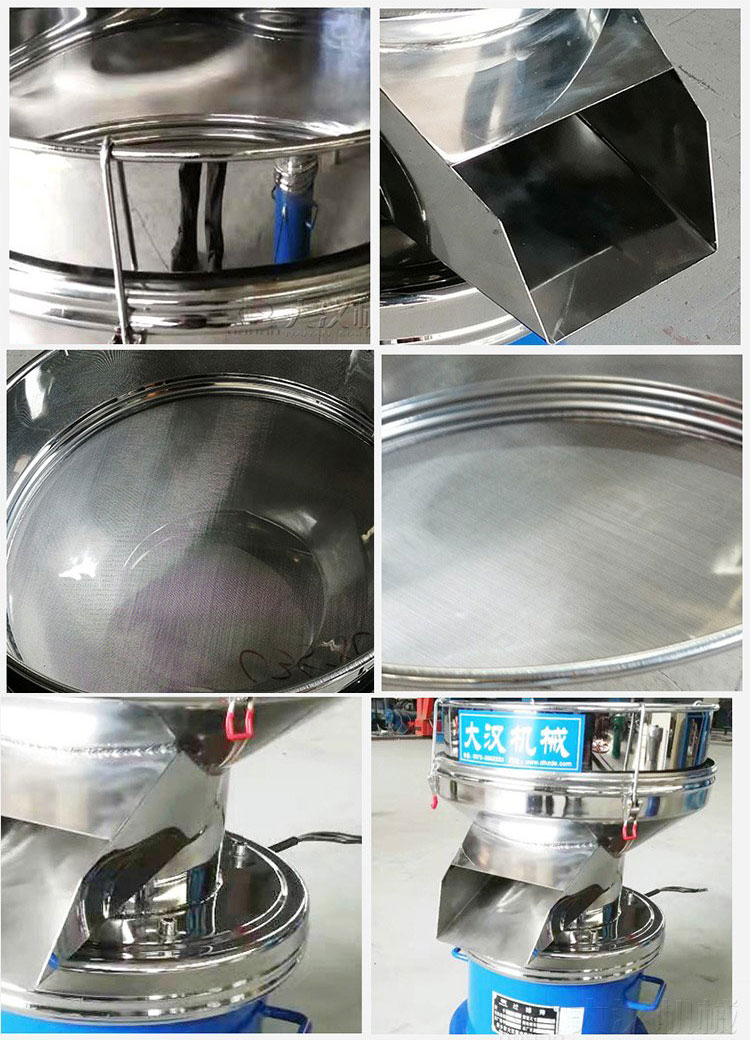

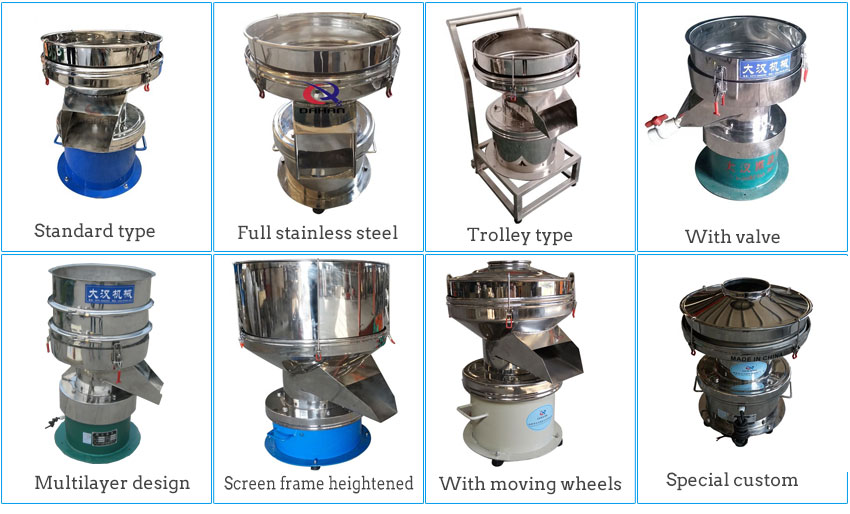

450 filter screen different customized pictures show

working principle

This equipment uses a vertical vibration motor with eccentric blocks at the upper and lower ends of the motor. The angle and gravity of the upper and lower eccentric blocks are used to control the movement trajectory and residence time of the material on the screen, so as to achieve the ideal screening. Or filtering effect (usually adjust the angle of the lower eccentric block)

Technical Parameters

Model	Sieving area	Frequency	Size	Power	Voltage
DH-450	Φ400mm	1440r/min	0.038-3mm	0.18kw	380

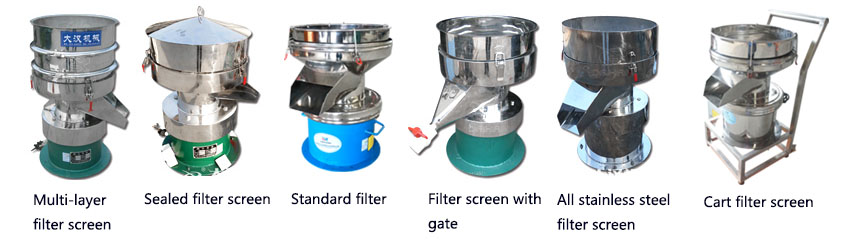

Optional options for Filter Sieve

Scope of application

450 filter screen is used for: paint, battery powder, washing powder, soy milk, paint coating, plastic particles,slurry, quartz sand, coal slime, metal powder, etc.

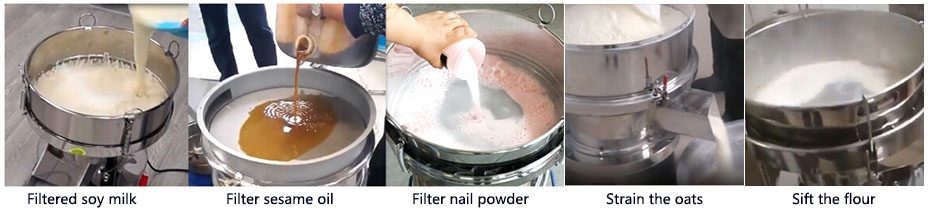

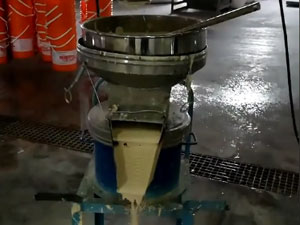

Filter sieve to filter oats, soy milk, sesame oil, nail powder, flour and other materials at the test machine site

materials	number of stitches	Yield
spray paint	325 mesh	1200L/h
flour	30 mesh	700kg/hour
juice	40mesh-80mesh	6-10 cubic meters/hour
pigment	100-200 mesh	500kg/hour
battery powder	100mesh, 120mesh	600kg/hour
Pomegranate juice	100 mesh	5 tons/hour
paint paint	450 mesh	800kg/hour
oat	10 mesh	800kg/hour

Video display

Filtered soy milk

Filter paint, plastic powder

Replacement steps of screen

Structure and optional options

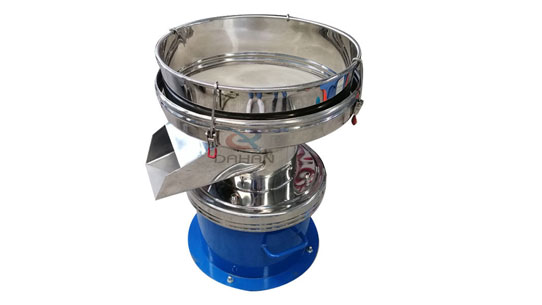

Structure of 450 filter sieve

Hopper: 304 stainless steel sieve hopper is used, the interior is smooth and does not accumulate material.

Discharge port: large-diameter discharge channel, rapid discharge and large processing capacity.

Screen: It can handle materials below 400 mesh, and the mesh is not easy to block.

Screen frame: heightened design to prevent liquid splashing, waste or pollution.

Hydraulic fittings: One-time hydroforming without interface, good sealing and firmer.

Chassis: The overall design is closed to prevent dust and liquid from entering the interior of the motor.

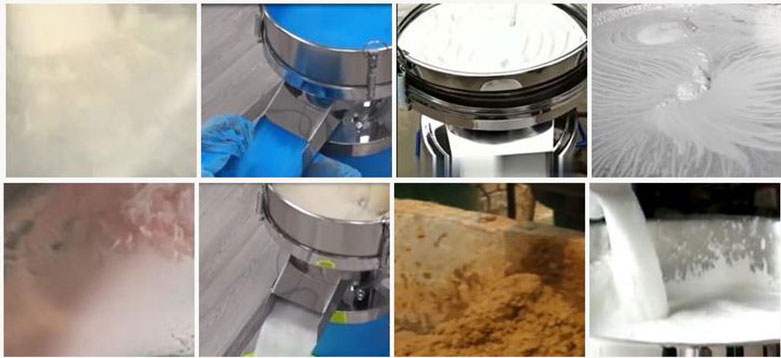

Different applications of 450 filter sieve

The welding of the 450 filter sieve is seamless, and the motor is waterproof and explosion-proof, so you don't have to worry about liquid leakage or safety issues!

1. 450 filter sieve to filter juice or milk with good fluidity

When the liquid you need to filter is a smooth liquid with good fluidity, you only need to choose a sieve of about 100 mesh to complete the filtration of 99.99% of juice or milk! Removes fruit fibers, pulp, milk sediment that may be present in it, giving you a cleaner product with a velvety smooth taste.

When you finish filtering the product, the waterproof motor design allows you to rinse it directly with water

Valved outlets, open outlets, and others are available.

2. 450 filter sieve is used to process cold press oil or other edible oil

Cold press oil is considered a natural, healthy and high-value oil, but how to improve efficiency when extracting oil without heating is already extremely difficult? Then choose to use the machine in some steps to make up for the loss in the pressing efficiency.

450 filter sieve can be used to deal with seed hulls, seed particles and even fabric fragments that may exist in cold press oil, to ensure the cleanliness of cold press oil, provide better taste and longer storage time. Compared with manual cold press oil filtration, the efficiency will decline over time, and even impurities such as hair will be mixed in. 450 filter sieve will undoubtedly be a more effective and clean filtration method.

Valved outlets, open outlets, and others are available.

3. 450 filter sieve is used to separate two kinds of solids (particles, powders) with different particle sizes

Although the 450 filter sieve is designed for liquid filtration, this does not prevent the 450 filter sieve from processing solid bulk materials. After all, the existence of the sieve can separate particles of different sizes that meet the specifications.

The sieve of 450 filter sieve can choose 2-400 mesh, choose the appropriate mesh surface according to your material situation, of course, this is only suitable for processing solid products with low output requirements.

Industry Solutions

325 mesh filter spray paint with a specific gravity of 1.1, and the output can reach 1200 liters per hour

30 mesh sifted flour, can process 700 kg per hour

250 mesh filter wall paint can reach 1.5 cubic meters per hour

Reference for screen mesh size
Powder	Flour--30 mesh, plastic powder--70/80 mesh, plastic granules--35 mesh/45 mesh
Liquid	Spray paint -- 325 mesh, paint -- 280 mesh, soybean milk -- 120/160 mesh, pigment -- 400 mesh, paint -- 300 mesh, lime slurry -- 240 mesh, styrene-acrylic emulsion -- 200 mesh
