Price: $550.00（1-2 Sets） $500.00（3-4 Sets） $450.00（>=5 Sets)
Maximum power output: 0.18kw
Output rated voltage: 220V / 380v or as required
Fuse 100-120v: 2 * 2.5A slo blo 200-240V: 2 * 1.25A slo blo
Protection level: IP65
Pollution degree: 2
Ambient temperature: -10-35°C
Characteristic type: plus edge type, discharge port plus valve, screen frame heightened, mobile type
Product material: carbon steel + stainless steel, all stainless steel
1. The residue and impurities can be automatically removed, and automatic operation can be realized.
2. The mesh will not be blocked, the powder will not float in the sky, and the mesh will reach 400 meshes.
3. Screening, high filtration efficiency; any particles, powders, and mucus can be used.
4. Unique screen frame structure design, the screen can be used for a long time, and it is convenient to replace the screen.
5. High efficiency, exquisite design, durable, any powder, mucus can be used.
6. The model (304) is made of stainless steel, small in size, light in weight, immobile, and does not take up space.

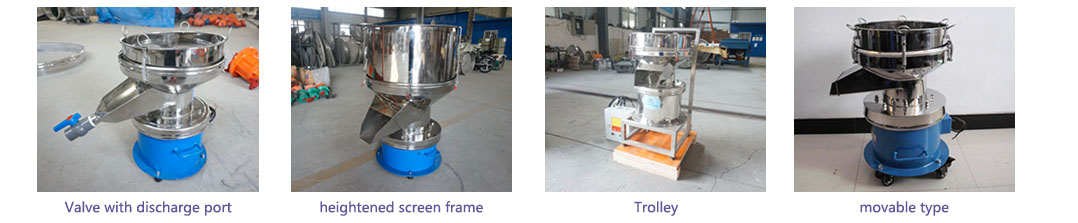

Flanged type, valve at the discharge port, heightened screen frame, movable type

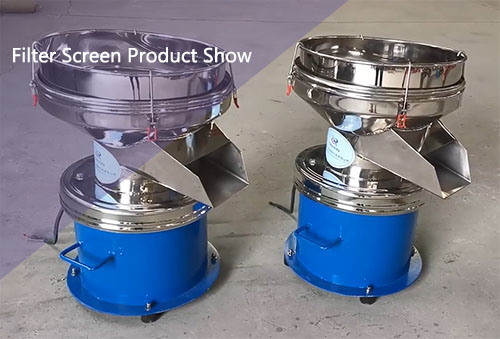

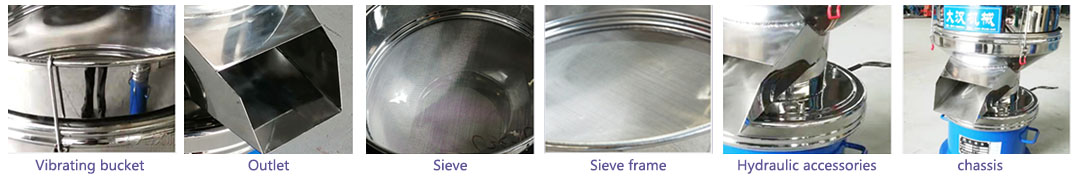

The Vibration Sieving Machine is mainly composed of a screen frame, a screen, a frame, a vertical vibration motor, etc. The general contact material part is made of 304 stainless steel, the frame is made of plain carbon steel, the weight of the whole machine is about 42 kg, and the horizontal vibration motor Installed inside the machine base, located at the lower part of the screen frame and the screen. The screen frame diameter is 450mm. The single-layer screen is non-wearing and has a long service life compared with the mother-child screen. The screen is directly pressed on the screen frame. In the tank, the screen is installed tightly, the screening and filtering efficiency is high, and the screen is easy to change.
| model | Screening area | frequency | power | Voltage | Number of layers | Screening range |
| DH-450 | Φ400mm | 1440 | 0.18 | 380V | 一 | 0.038-3mm |
| Serial number | name | unit | parameter | |
| 1 | Standard screen frame | Number of layers | 1 | |
| 2 | Screen frame diameter | mm | φ450 | |
| 3 | Screening force | mm | 0.038-5 | |
| 4 | noise | dB | ≤50 | |
| 5 | Feeding amount (one-time) | Kg | ≤5 | |
| 6 | amplitude | mm | ≤5 | |
| 7 | Motor | Voltage | V | 380 |
| Rotating speed | r/min | 1440 | ||
| power | Kw | 0.12 | ||
| 8 | Dimensions | mm | 360×300×470 | |
| 9 | Total Weight | kg | 42 | |
Plastic powder (70 or 80 mesh), soy milk (120/160 mesh), coating (400 mesh), battery powder (100-120 mesh)
Large particle content powder screening and slurry filtration; 325 mesh filter spray paint with a specific gravity of 1.1 can reach 1,200 liters per hour, and 30 mesh sieved flour can process 700 kg per hour
Chemical industry: paint, ink, color paste, paint, latex paint, aluminum paste
Food industry: starch, soy milk, fruit juice, beverages, dairy products, condiments
Other industries: mud, waste liquid, Chinese and Western medicine liquid, etc.
Filter paint
Filtered soy milk
Filter nail powder
