Vibrating sieve

What is a vibrating sieve?

Vibrating sieve uses the vibration of the motor to make the machine move in three directions: horizontal, inclined and vertical, so that the bulk materials entering the machine can be dispersed, and the separation and size determination of particles can be realized. Compared with the manual sieving method, the efficiency of Vibrating sieve can be increased by 5-10 times and the production efficiency will not decline due to the extension of working hours.

feature

1. High efficiency, exquisite design and durable, fine and mucus can be screened.

2. The sub-mother grid is equipped with a net-clearing pinball, which can clean up the blocked mesh in time, and can screen powder or liquid as fine as 500 mesh (0.028mm).

3. Miscellaneous and coarse materials are automatically discharged and can be operated continuously. The screen can be designed with 1-5 layers, and 2-6 specifications of materials can be screened at the same time.

4. Unique grid design, the screen can be used for a long time, and the screen can be changed quickly, only 3-5 minutes.

working principle

The working principle is that the vertical motor is used as the excitation source. The upper and lower ends of the motor are equipped with eccentric weights, which convert the rotating motion of the motor into horizontal,vertical and inclined three-dimensional motion, and then transfer this motion to the screen surface.Adjusting the phase angle of the upper and lower ends can change the movement trajectory of the material on the screen surface.

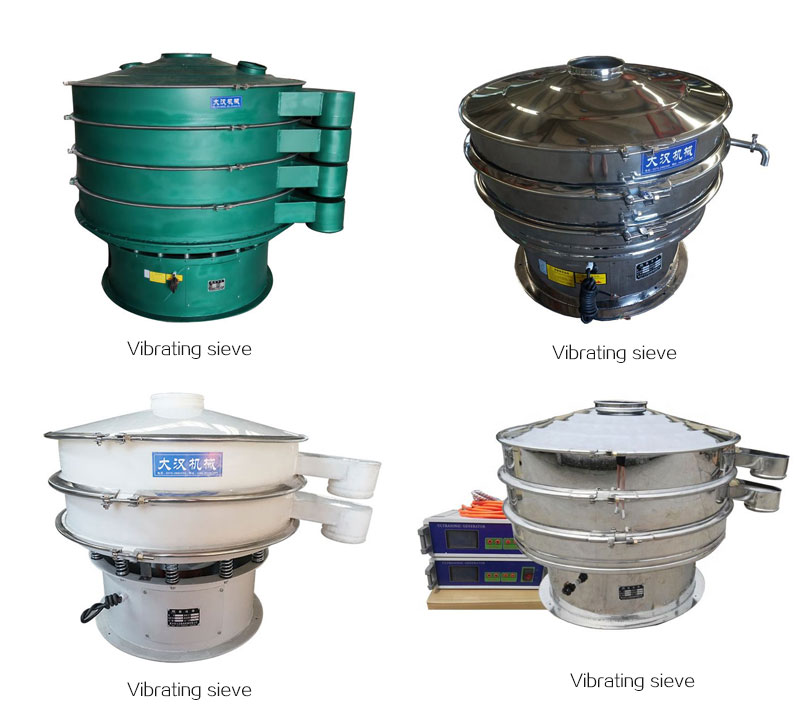

Classification of Vibrating sieve

Technical parameters

Model number	DH-600	DH-800	DH-1000	DH-1200	DH-1500	DH-1800	DH-2000
Product Image
Diameter (mm)	Φ600	Φ800	Φ1000	Φ1200	Φ1500	Φ1800	Φ2000
Screen area (㎡)	0.24	0.45	0.67	1.0	1.6	2.43	3.01
Screen size (mesh)	2-500
Feeding size (mm)	<Φ10	<Φ15	<Φ20	<Φ30
Vibration times(rpm)	1500	1500	1500	1500	1500	1500	1500
Effective screen diameter (mm)	Φ560	Φ760	Φ930	Φ1130	Φ1430	Φ1760	Φ1960
Number of layers	1-5
Power (Kw)	0.25	0.55	0.75	1.1	1.5	2.2	3

What is Vibrating sieve used for?

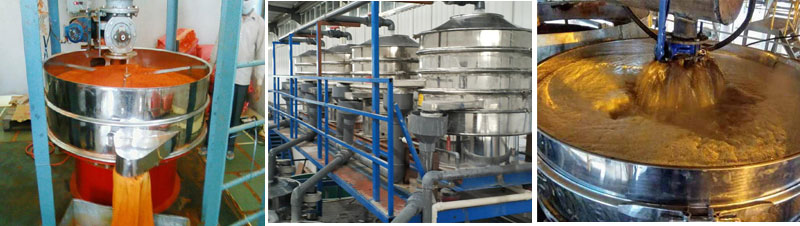

Whether the material is dry or wet, fine or coarse, specific gravity or light, it can be filtered from 0-400 mesh,whether it is liquid or slurry, 0-600 mesh can be filtered

Chemical industry: resin, paint, industrial medicine, cosmetics, paint, Chinese medicine powder, etc.

Food industry: powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.

Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod powder,manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials,kaolin, lime, alumina, heavy carbonic acid Calcium, quartz sand, etc.

Pollution treatment: waste oil, wastewater, dyeing and finishing wastewater, additives, activated carbon, etc.

Image	Material	Proportion	Mesh	Model	Method	Processing Capacity(Kg/h)
	Wheat Starch	1	250 mesh	DH-1200-1S	Wet	3200
	Flour	0.6	24 mesh	DH-1000-1S	Dry	1500
	Medicine Powder	0.8	80 mesh	DH-800-1S	Dry	550
	Soy Sauce	1	100 mesh	DH-1200-1S	Wet	6500
	Salt	1.2	30/80 mesh	DH-1500-1S	Dry	5000
	PVC Resin	1	0㎜/5㎜	DH-1200-2S	Dry	3000
	Graphite	1.2	16/40/80 mesh	DH-1000-3S	Dry	1400
	Aluminum Powder	0.9/1.2	80/120 mesh	DH-800-2S	Dry	350
	Emery	4	60 mesh	DH-1000-1S	Dry	300
	Spray Soil Particles	2	10 mesh	DH-1000-1S	Dry	18000
	Mud	1.1	250 mesh	DH-1000-1S	Wet	3200

1. Food and medicine

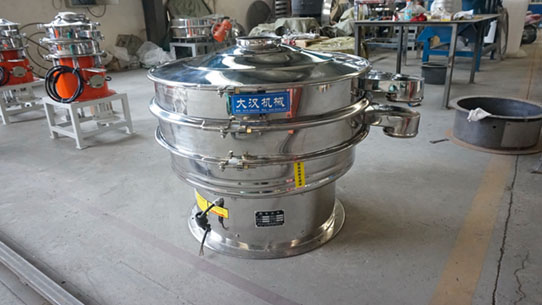

The vibrating sieve used in the food and medicine field is mostly made of 304 or 316L stainless steel to provide good hygienic protection. It can be used to process food particles, powders and even fruit juice liquids. It is usually used in the initial screening of food raw materials and final quality inspection and packaging.

2. Chemical building materials

When Vibrating sieve is used in the chemical building materials industry, due to the special properties of some chemical materials (toxic, flammable, explosive) or the strong abrasiveness of some building materials, it is easy to generate dust pollution. sieve and choose a fully sealed design as well as an explosion-proof motor.
