The vibrating sieve made of 304/316L is specially used for high hygiene standards of food and medicine, and can also be used in chemical or environmental protection fields to avoid corrosion.
Effective screening area: 0.24-3.01㎡
Power: 0.25-3kw
Screen mesh: 2-500 mesh
Screen effective diameter: 400-2000mm
Screen layers: 1-5 layers are removable
Hourly output: 100-3300kg (customizable)
Features: Hygienic, rust-free, corrosion-resistant, wear-resistant

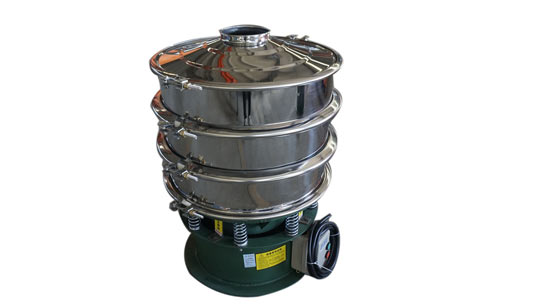

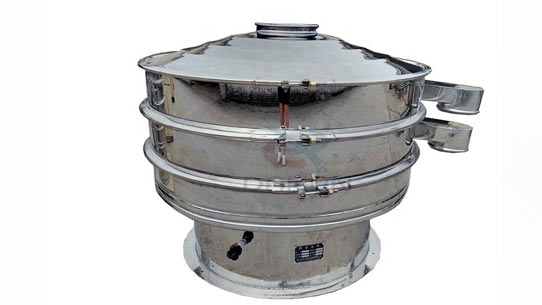

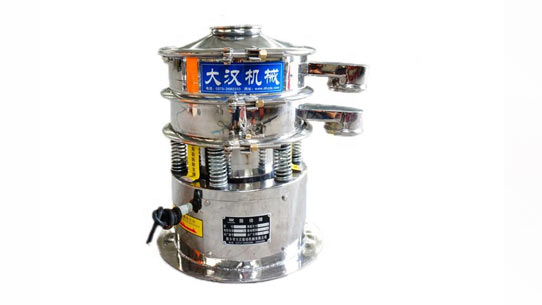

Stainless Steel Vibrating Sieve: Vibrating screening equipment made of stainless steel, using the motor as the power source to provide conditions for the screening of materials. The smooth stainless steel material means that it can handle some special materials, such as high temperature or corrosive, under the conditions of food/pharmaceutical hygiene. It can separate up to 6 kinds of specifications for the solid materials put into it, and it can also complete the work of impurity removal or liquid filtration.
304 stainless steel material: stainless steel material for food, suitable for processing food materials with moderate acid and alkali corrosion.
316L stainless steel material: medical stainless steel material, containing 2-3% molybdenum element, can withstand stronger corrosion and higher temperature.
1. Made of 304 stainless steel or 316 stainless steel, it is resistant to corrosion, high temperature, low temperature, not easy to rust, and does not pollute materials.
2. Eccentric blocks are installed at both ends of the motor to control the inclination angle of the screen surface, which can be adjusted according to changes in materials during screening and changes in production requirements.
3. The sieve has a long service life and is easy to replace. The specifications can be configured arbitrarily.
4. The design is exquisite and durable, with low noise, continuous operation, and the material can be automatically discharged in 360-degree direction.
5. The whole machine has good sealing performance, the powder does not fly, and the liquid does not leak, and it can be used in single or multiple layers at the same time, up to 5 layers;
6. There is no dead angle in the structure of the components, which is convenient for disassembly and assembly, and is easy to be thoroughly cleaned and disinfected.

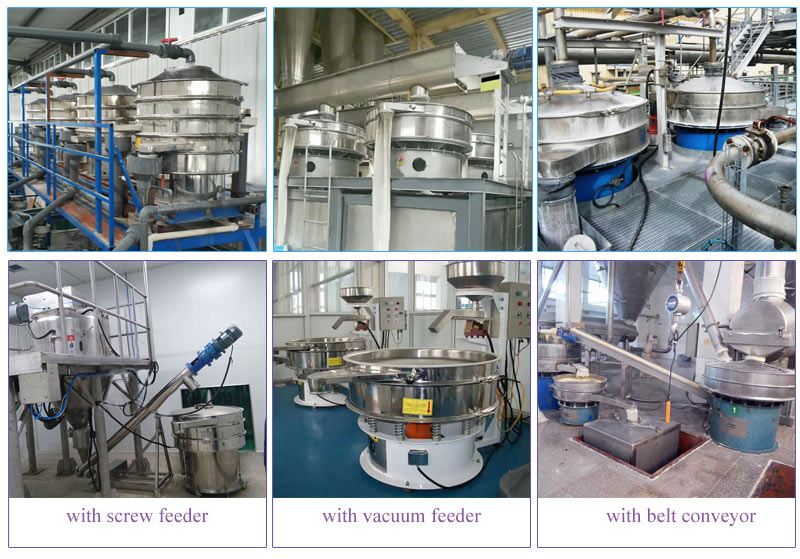

Due to the unique characteristics of high temperature resistance, corrosion resistance and more hygienic characteristics of stainless steel vibrating sieve, it is often used in the pharmaceutical and food industries, and can also be seen in the chemical industry:
Food industry: flour, starch, sugar, salt, milk powder, condiments, beverages, fruit juice, sesame, etc.
Pharmaceutical industry: medicinal raw materials, traditional Chinese medicine powder, nucleotides, Chinese and Western medicine granules, pills, etc.
Chemical industry: chemical powder, chemical preparations, additives, sewage, etc.

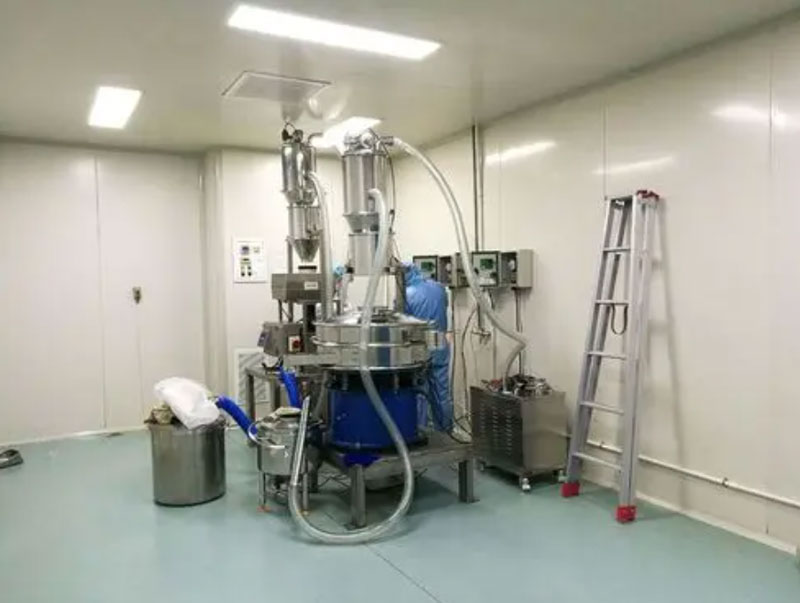

| Main point | Stainless Steel Vibrating Sieve site | Manual screening site |
| Handling materials | Pellets | |
| Yield | The output of a single special sieve is 350 kg/h | Manual sieving 100kg/h per person |
| Performance | The special sieve can work continuously for 24 hours to ensure that there will be no hair and other debris mixed in | Manual sieving and continuous shaking for 1 hour will cause overwork, and impurities will be mixed in the pellets intentionally or unintentionally |
| Cost | The machine is unmanned and can be used for a long time | According to the 350kg/h output of a granulator, it is necessary to hire 4 workers to shake the screen, which requires high labor costs |
| Accuracy efficiency | The special sieve has a more uniform sieving particle size, and the accuracy can reach more than 95%. | The accuracy of manual screening is unstable, the longer the working time, the lower the accuracy |
| GMP standard | Conform to | Incompatible |
1. Almond particles treated with Stainless Steel Vibrating Sieve
Purpose: To remove impurities (husks, stones, etc.) and broken nuts in almonds, and to classify almonds according to their diameter
Difficulties: Impurities in almonds and irregular broken kernels can easily cause screen blockage
Advantages of use: 1. More efficient and better cleaning effect; 2. Comes with a net cleaning device, which can be cleaned at any time to avoid clogging; 3. Stainless steel material, in line with food standards
2. Stainless Steel Vibrating Sieve processing flour
Purpose: to remove impurities in flour or agglomerated flour
Difficulties: The flour is light and easy to fly, and it is difficult to pass through the sieve
Advantages of use: 1. The sieving is completed in a fully enclosed space, and the flour will not scatter; 2. The vibration trajectory of the machine has three forms: inclined, horizontal, and vertical, which can ensure that the flour passes through the sieve smoothly. Ultra-fine flour powder can be equipped with ultrasonic waves 3. Use explosion-proof motors to ensure work safety
3. Stainless Steel Vibrating Sieve filter soymilk
Purpose: To filter out unground beans or okara in soy milk
Difficulty: Soymilk splashes or leaks
Advantages of use: 1. A silicone sealing ring is installed between the screen frames of the machine, which is tight and the liquid does not leak; 2. The feeding frame can be designed to be heightened to avoid leakage of soybean milk during processing; 3. The waterproof motor is selected, which is more convenient Safety
| Model | Diameter (mm) |
Feeding Size (mm) |
Frequency (RPM) |
Layers | Power (kw) |
Capacity (kg/h） |
| DH-400 | 400 | <10 | <1500 | 1-5 | 0.18 | 100 |
| DH-600 | 600 | 0.25 | 200 | |||
| DH-800 | 800 | 0.55 | 500 | |||
| DH-1000 | 1000 | 0.75 | 800 | |||
| DH-1200 | 1200 | 1.1 | 1200 | |||
| DH-1500 | 1500 | 1.5 | 1800 | |||
| DH-1800 | 1800 | 2.2 | 2000 |
| Special design | Feature | Effect | Picture |
| edge type | Feed inlet heightened | Reduce powder and liquid splashing |  |
| observation window | Sealed sieve cover with observation window | Keep abreast of material screening |  |
| gate type | Add a movable gate to the discharge port | Extend the screening time for difficult screening materials |  |
| Anti-corrosion plastic | Polypropylene material | Screens corrosive and metal-reactive materials |  |
| Explosion-proof | Enhanced sealing, BZDL explosion-proof vertical vibration motor | Special industries, explosive materials screening use |  |
| feed bin | Add material storage bin with valve | No manual feeding is required, and the material flow is controllable |  |
| special coating | Teflon coating is sprayed inside the screen frame | More wear-resistant, special materials are used for screening |  |

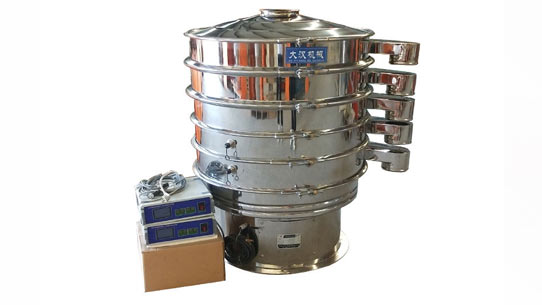

| Ultrasonic system | Add ultrasonic device | Light and fine, electrostatic powder screening |  |

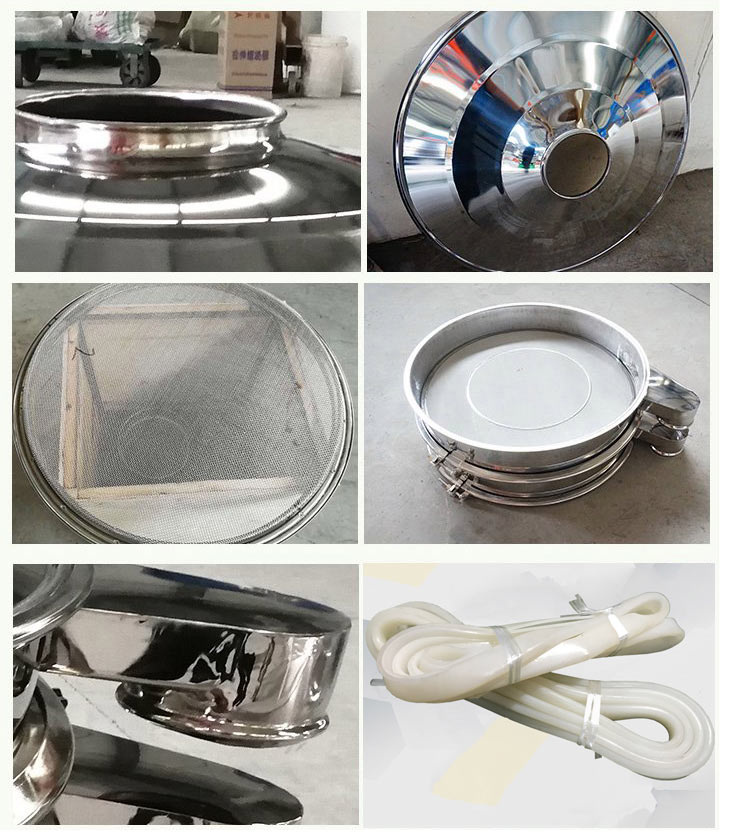

Inlet: Elevate, enlarge, reduce or design flange ring
Dust cover: to prevent material splashing and causing pollution or waste, an observation window can be designed
Screen mesh and mesh frame: The sub-master mesh frame has good support and is not easy to be damaged, and it only takes 3-5 minutes to change the mesh.
Outlet: It can be rotated 360°, and special outlet design can be carried out
Silicone sealing ring: silicone material for food to prevent leakage of materials during screening
The working principle is that the vertical motor is used as the excitation source.
The ultrasonic sieve deblinding system of the ultrasonic vibrating screen
