Price: $780.00(1-2 Sets) $600.00(>=3 Sets)
Maximum power output: 370kw
Output rated voltage: 220V / 380v / 400v / 415v / 440v / 480v
Maximum output current: Fuse 100-120v: 2 * 2.5A slo blo 200-240V: 2 * 1.25A slo blo
Protection level: IP65
Pollution degree: 2
Trait type: flapping vibration type
Product material: the body is carbon steel, the screen frame is stainless steel
Ambient temperature: -10-35°C
The Sieve Equipment replaces manual sample screening by electric means with adjustable frame height and equipped with special clamps to fit test screens with Φ200 or Φ75, Φ100 or Φ300 sets.

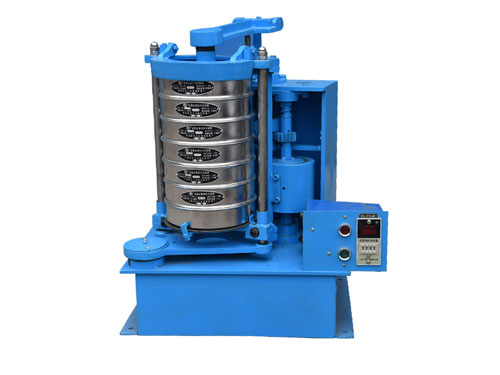

1. Single-seat Sieve Equipment: Only one set of sieve frames can be placed

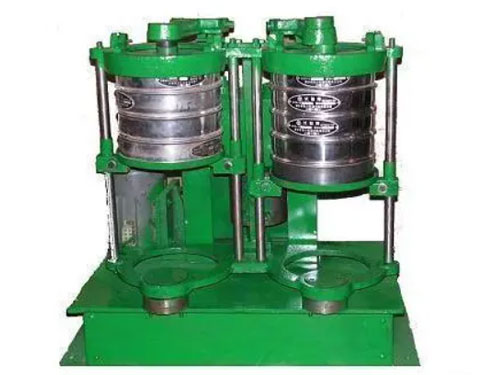

2. Two-seat Sieve Equipment: Two sets of sieve frames can be placed simultaneously for analysis of two different sets of samples
1, fast feeding: at the same time with shaking and beating two forms of movement, fast feeding, screening thoroughly, not easy to plug the screen surface.
2, clamping is convenient and flexible: you can install Φ200 test screen frame, and can install Φ100 test screen frame, Φ75 test screen frame.
3, booking time: the device is installed with a digital display timer, set the time when the active stop.
4, accurate speed: the selection of gear driven "synchronous belt" transmission method, transmission accuracy and consistency is good, will not produce speed loss, slip belt phenomenon.
The motor in the Sieve Equipment moves the synchronous belt and spindle through gears/belts, and the motion power is transmitted to the Sieve frame tray and the paddle hammer. This allows the Sieve Equipment to rotate and reciprocate the material in the sieve frame with both circular and beating motions.
Sieve Equipment can be used to screen materials in the field of geology, metallurgy, powder, chemicals, construction, cement, medicine and national defense as well as in the field of research, production and laboratory.

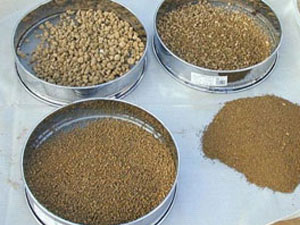

Material: Soil particles
Mesh: 20 mesh -8mm
Recommended product: 300 Sieve Equipment

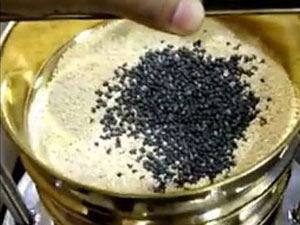

Material: Activated carbon
particle size: 0.1mm-12mm
Recommended product: Model 200 Sieve Equipment

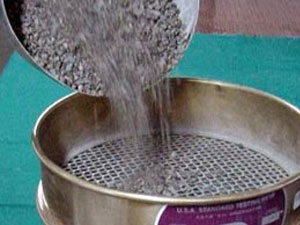

Material: Abrasive particle
screen Recommended: round punched screen
Recommended product: Sieve Equipment
| Serial number | project | Numerical value | unit |
| 1 | Number of shaking | 290（＋-）6 | Times/min |
| 2 | Slaps | 156（＋-）3 | Times/min |
| 3 | Reciprocating stroke | 25 | MM |
| 4 | Slap height | 38（＋-）6 | MM |
| 5 | Outer diameter of screen | 200、150、100、75 | MM |
| 6 | Sieve layer | 1-7 | Floor |
| 7 | Use voltage | 380、220 | V |
| 8 | Output Power | 370 | W |
| 9 | Dimensions | 520*400*700 | MM |
| 10 | net weight | 125 | KG |
It is suitable for general abrasive composition inspection, superhard material production classification and size structure inspection. It is also widely used in geology, metallurgy, powder, chemical, construction,cement,medicine, national defense and other fields. Screening and testing of materials.
1. The direction of rotation of the motor must be in the direction indicated by the arrow (three-phase motor) (because the cam is used to hit the ejector rod, the direction will be pinned and cannot be rotated).
Check the rotation direction of the motor: lift up the rod before starting the machine, and then turn it on. At this time, check the rotation direction of the motor. If it is wrong, you can swap the wires of two of the three phases and try again. Make sure the direction is correct before using it normally.
2. The equipment must be fixed before operation. The fixing is fixed with anchor screws, and expansion screws can be used to fix the equipment on the concrete floor.

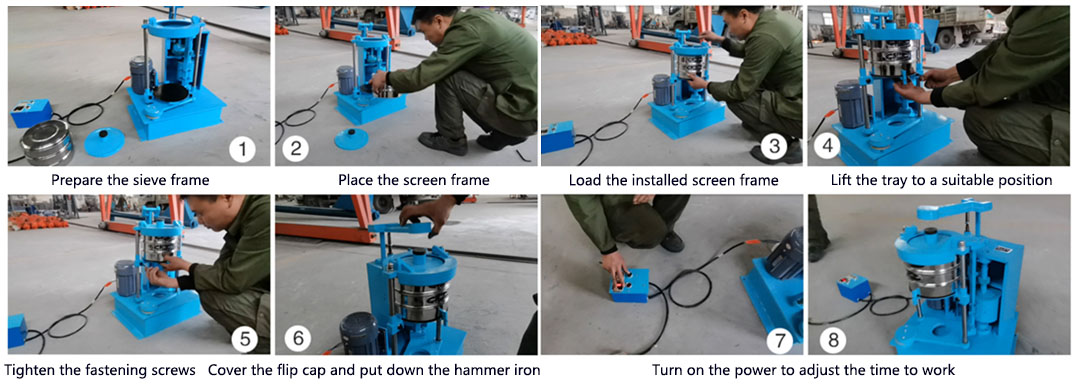

3. Install the test sieve: loosen the tray fastening screws, move the tray down, and load the test sieve (separating sieve, standard sieve) filled with materials, then lift the tray to a suitable position, tighten the fastening screws, and cover the flip cover , After putting down the hammer iron, set a good time to start. Using 100 and 75 clamps can use corresponding size sets of screens, and special sizes can be customized.
4. The equipment is equipped with a timing device, and the user can adjust the use time, and it will automatically stop when it is turned on. The first two digits of the adjustment time are minutes, and the last two digits are seconds. Users can adjust the running time according to their needs.
5. The slap height of the equipment can be adjusted before leaving the factory. If necessary, the user can also loosen the fastening nut, adjust the top rod head thread to rise or lower to a suitable position, and then tighten the nut.
6. The upper and lower slides, fueling nozzles, etc. should be refueled regularly.
How much does Sieve Equipment cost?
Sieve Equipment's standard model single price is: $20.00-$3,680.00/Set, different configurations of machines have different prices ...
