Linear Vibratory Sifter-Dahan Machinery

product description

Linear Vibratory Sifter is suitable for all kinds of dry powder or granular materials with particle size of 0.074-5mm, moisture content less than 7% and no stickiness. Linear Vibratory Sifter is driven by the same product and reversed by double motors, which can automatically discharge material and has large output. , Low energy consumption, more suitable for 24-hour assembly line operation, and can work with belt conveyors, vibrating feeders, rotary vibrating screens and other equipment.

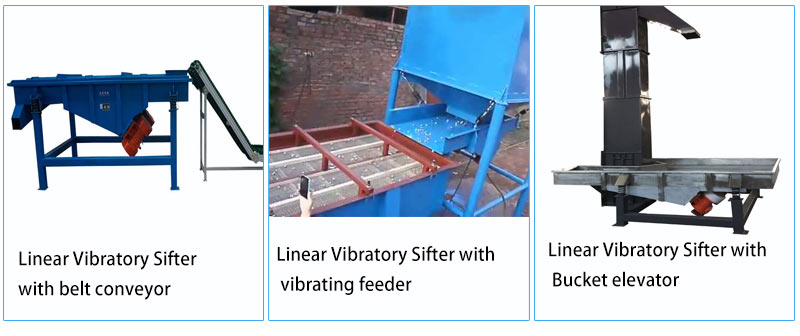

Product matching application display

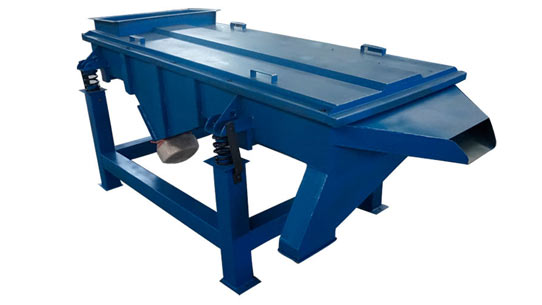

carbon steel：

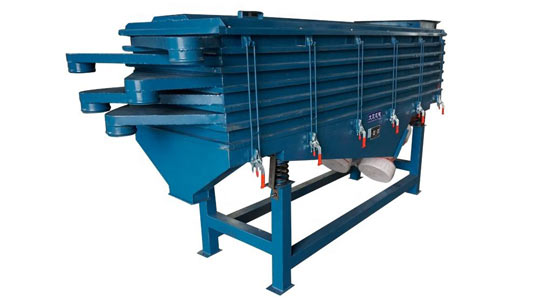

The common Linear Vibratory Sifter material is used for the screening of most scenes and materials. It is sturdy and durable, with low price and no special properties.

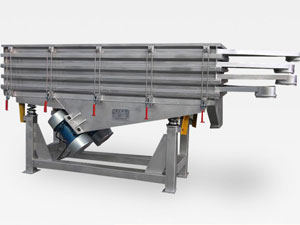

Stainless steel:

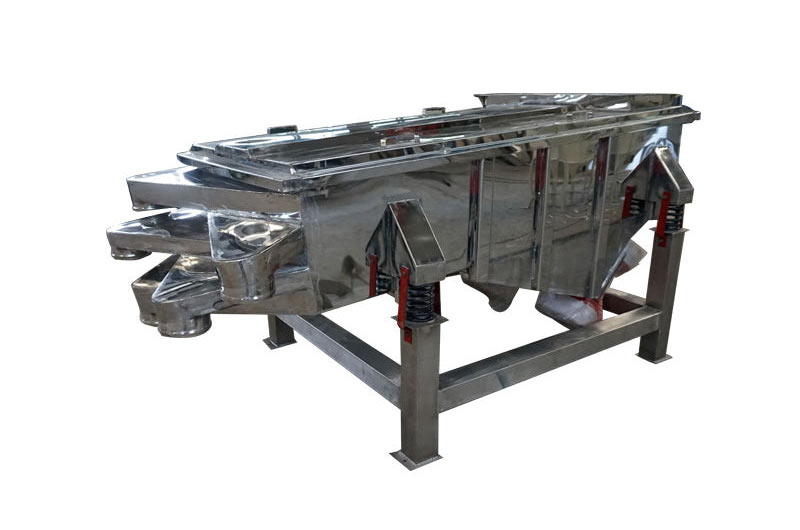

Made of 304 or 316L stainless steel, it is safe, non-toxic, resistant to acid and alkali corrosion, and does not rust. It is often used in food, medicine, and chemical industries, and its price is relatively high.

Linear Vibratory Sifter in different materials

How the Linear Vibratory Sifter works

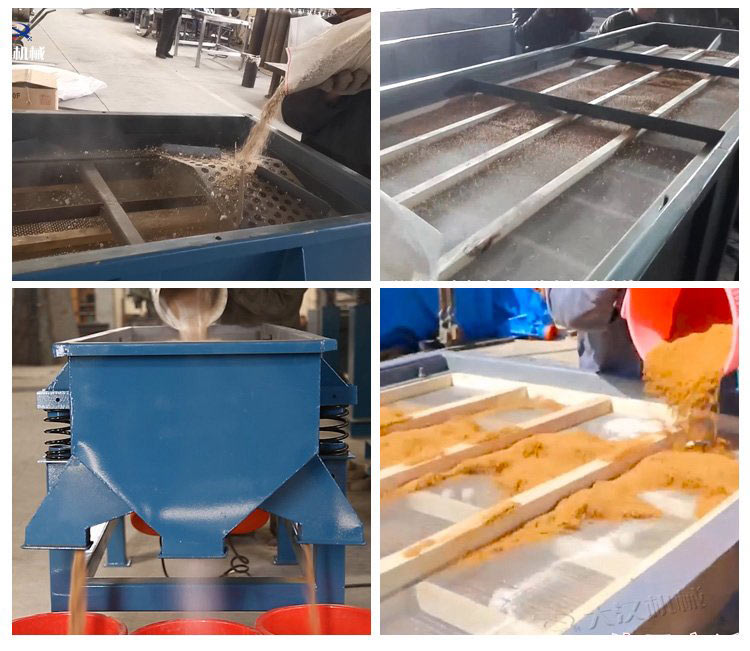

When the two vibrating motors vertically installed on the screen body are running relative to each other, the horizontal exciting force will cancel each other due to the relative running of the motor, and the longitudinal exciting force will be transmitted to the entire screen box through the vibration transmitting body. The screen surface is vibrated, so that the materials on the screen surface are subjected to the exciting force and jump to the direction of the discharge product on the screen surface, and the materials smaller than the screen hole pass through the screen hole and fall to the lower layer. Because the screening process is reasonable, after the materials are classified by the vibrating screen, several materials with different particle sizes can be obtained to complete the separation of materials.

Product advantages

1. 0.12-20 tons/hour large output screening and impurity removal.

2. It can be sieved as fine as 400 meshes, and the best effect is below 200 meshes.

3. Fully sealed design to avoid waste and pollution.

4. The 1-6 layers are effectively screened, and the materials are separated in 2-7 specifications.

5. The fixed structure of the screen box is easy to disassemble, which can easily replace accessories and maintain.

6. Automatic feeding and discharging, uninterrupted continuous production, reduce labor costs.

Product number

Model	Layer	Screening Area (mm)	Mesh Size (mesh)	Particle Size (mm)	Capacity (t/h)	Power (kw)	Vibration Direction Angle (°)	Screen Inclination (°)	Dual Amplitude
DZSF-520	1-6 layers	500*2000	2-400	0.074-10	≤3	0.37×2	45-60	0-7	3-4.5
DZSF-525		500*2500			≤5	0.37×2
DZSF-612		600*1200			≤8	0.37×2
DZSF-1020		1000*2000			≤12	0.75×2
DZSF-1025		1000*2500			≤16	0.75×2
DZSF-1030		1000*3000			≤20	1.1×2
DZSF-1224		1200*2400			≤23	1.5×2
DZSF-1525		1500*2500			≤28	1.5×2
DZSF-1530		1500*3000			≤32	2.2×2

Linear Vibratory Sifter Design

Name	Image	Features
Ordinary Linear Vibratory Sifter		Suitable for handling a wide range of dry powders and granules
Air-cooled Linear Vibratory Sifter		It is suitable for high temperature materials and can be screened after effectively reducing the temperature of the materials.
Adjustable Linear Vibratory Sifter		Adjust the angle and height of the Linear Vibratory Sifter according to the material screening process.
Suspended Linear Vibratory Sifter		The screening equipment that can be installed in the air can save space on the screening site

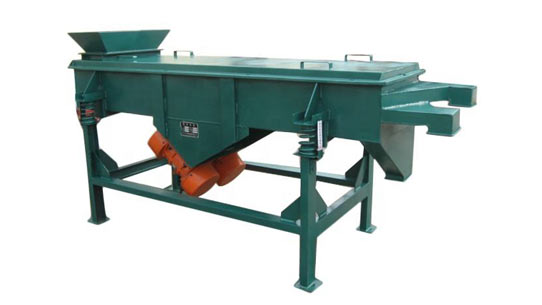

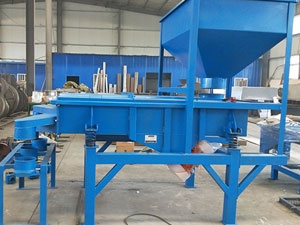

Silo type Linear Vibratory Sifter		Equipped with a feeding bin, the feeding speed can be controlled by adjusting the feeding bin insert.

Name	Image	Features

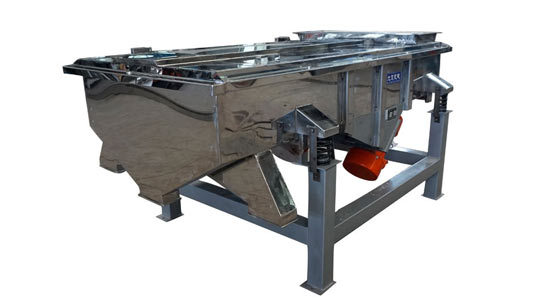

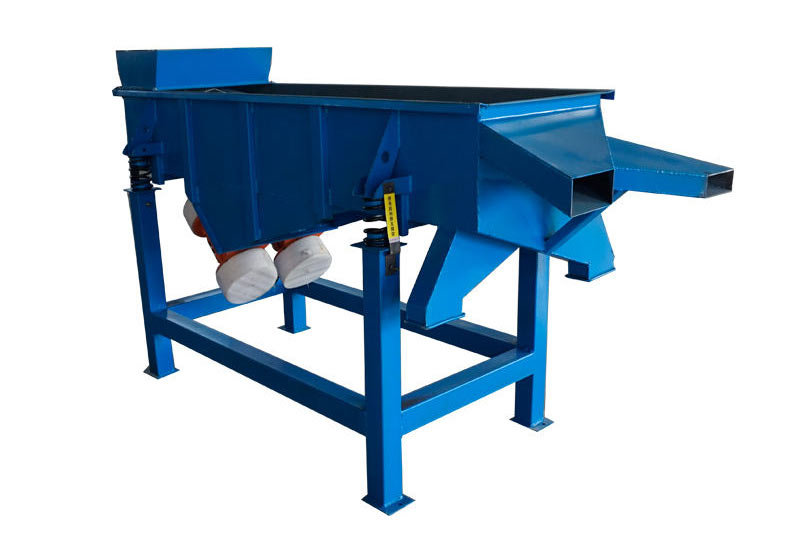

Ordinary Linear Vibratory Sifter	1	Suitable for handling a wide range of dry powders and granules

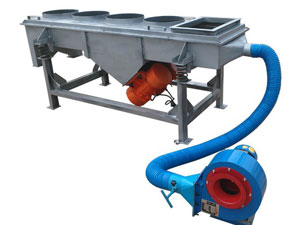

Air-cooled Linear Vibratory Sifter)	2	It is suitable for high temperature materials and can be screened after effectively reducing the temperature of the materials.
Adjustable Linear Vibratory Sifter	3	Adjust the angle and height of the Linear Vibratory Sifter according to the material screening process.

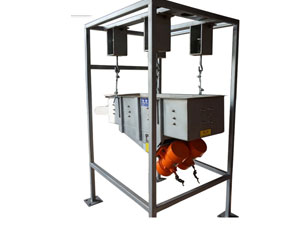

Suspended Linear Vibratory Sifter	4	The screening equipment that can be installed in the air can save space on the screening site
Silo type Linear Vibratory Sifter	5	Equipped with a feeding bin, the feeding speed can be controlled by adjusting the feeding bin insert.
Exciting force(kN)	2.5*2	5*2
Fan speed(r.p.m)	2900	2900

Applications

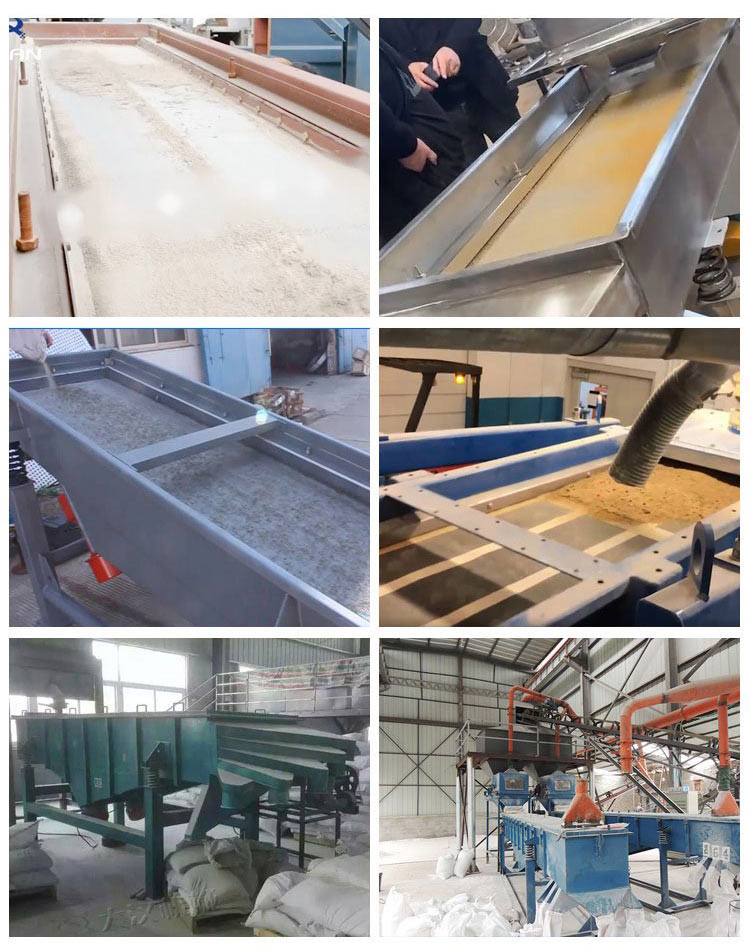

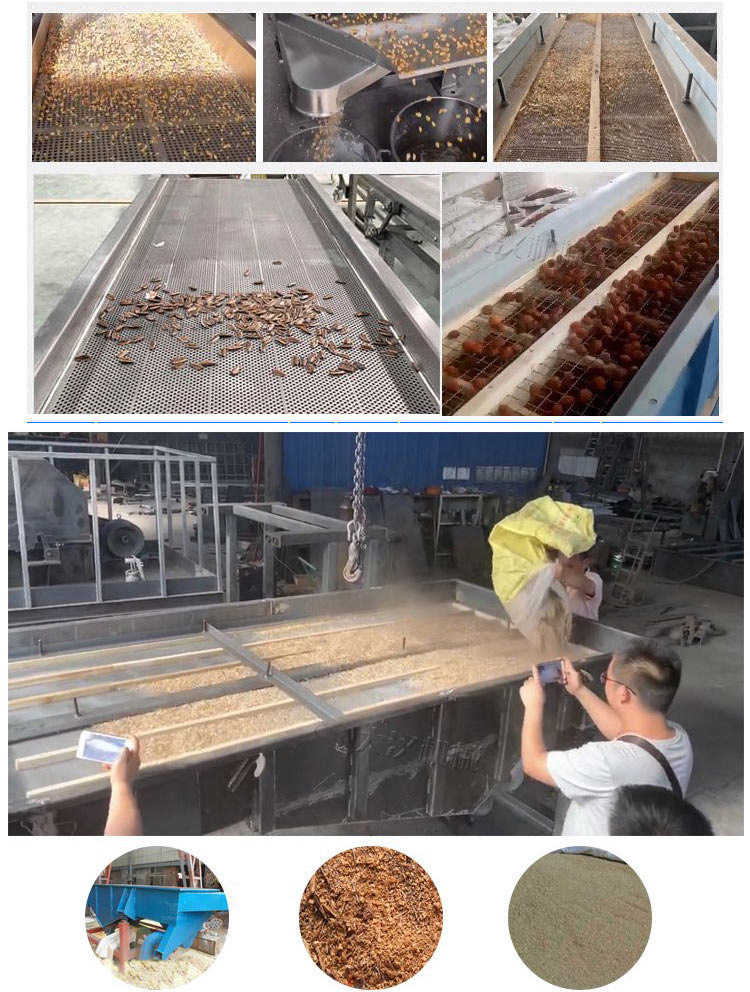

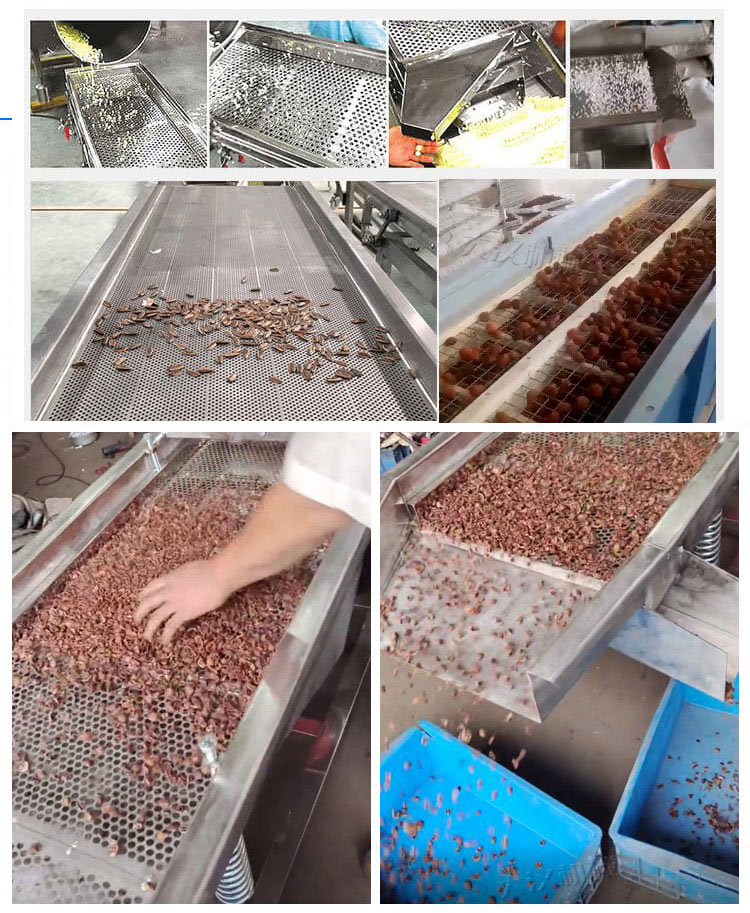

1Linear Vibratory Sifter has a wide range of application scenarios. In addition to food, plastic, abrasive, chemical, pharmaceutical, building materials, grain, carbon, fertilizer and other industries, it can also be used in the production line of various materials for screening or impurity removal. It can cooperate with the original upper and lower end feeding and processing machines (conveying equipment, lifting equipment, feeder, etc.), saving time, manpower and cost.
