Silo volume: 150L (customized on demand)
Dust collector power: 1.6KW
Filter: 6
Machine material: 304 stainless steel
When the small bag of material needs to be unpacked and poured into the next process, it only needs to be unpacked manually and put into the Dust-free feeding station. The material dust generated during feeding is collected by the dust collector. The materials pass through the vibrating screen (safety screen) to intercept bulk materials and foreign objects, so as to ensure that the finished products (qualified materials) that meet the requirements enter the next process.

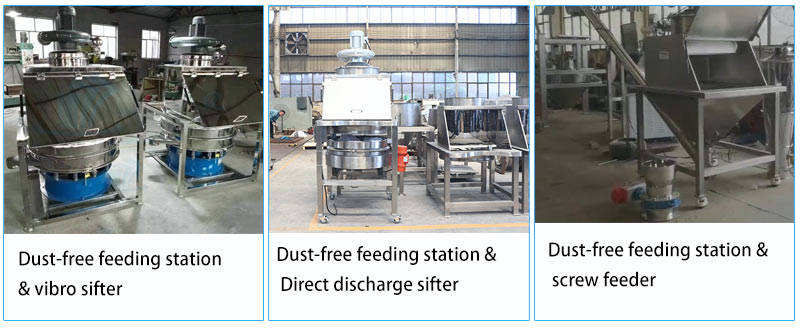

Dust-free feeding station is usually used with vibro sifter or Direct discharge sifter, and can also be used with feeding equipment such as screw feeder.
1. The batching material hopper, combined with the glove box design, realizes 100% isolation of dust and gas from the operator.
2. Equipped with filter dust collector, star discharge valve, etc. for uniform discharge.
3. A beating device can be installed under the hopper to assist in unloading.
4. In addition, a weighing device is installed in the unloading bin, which can weigh and measure the materials in the hopper.
5. Screening, drying, and packaging equipment can be connected according to the actual situation, and processes such as material drying and packaging can be realized.
1. Dust-free feeding: The automatic dust collection system can absorb and discharge dust well, prevent the material from generating dust in the process of unpacking and feeding, and improve the working environment.
2. Sealing structure: the overall airtight, no leakage, no cross-contamination, can be directly installed in the clean workshop to ensure a clean and relaxed working environment for workers.
3. Bag opening stations of various specifications: one equipment can dump 50kg, 25kg, 15kg bags, which can meet different processing requirements.
4. Small material loss: The machine uses the recoil principle, which can effectively intercept material leakage and reduce losses.
5. Various materials: The dust-free feeding station can choose various materials according to the different requirements of customers: stainless steel (SS304, SS304L, SS316, SS316L), carbon steel, etc., but the equipment is generally made of stainless steel.
6. Easy to adjust: the overall structure, overall height, and screening device can be designed and adjusted according to the actual site layout of the user, and can also be equipped with vibrating screen, iron remover, vacuum feeder and other equipment for comprehensive use.
| project | Using Dust-free feeding station | Traditional manual feeding |
| artificial | Only one unpacking worker is required | More than one worker for feeding, feeding and batching |
| dust | no dust | The dust situation is more serious |
| Safety | Sealed and explosion-proof, no dust, no harm to employee safety | There are security risks |
After opening the door of the Dust-free feeding station, the vacuum fan starts automatically. After the small bag is opened, the material is manually fed into the Dust-free feeding station. After being filtered by the screen, the raw material enters the cone of the Dust-free feeding station. The dust generated is automatically sucked by the dust suction fan, and the raw material is stored in the cone for the next process use.
The Dust-free feeding station is equipped with a filter and a back-blowing air bag. After the feeding is completed and the door is closed, the air bag will automatically back-flush and clean the filter.

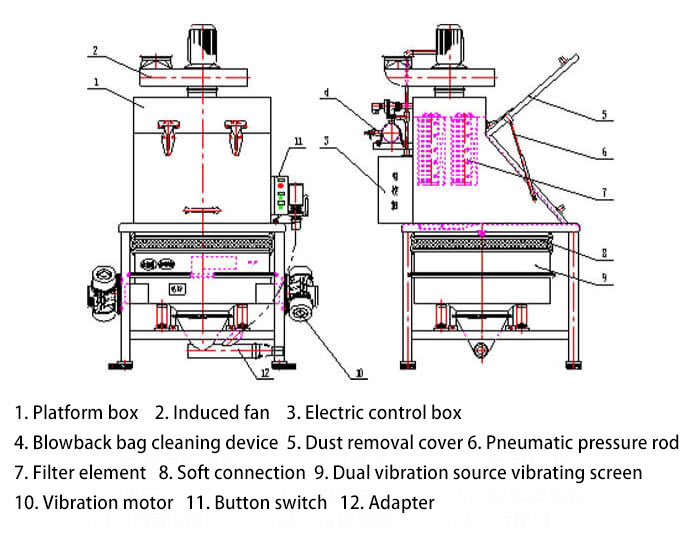

1. Operation table: The dust removal, filtering and feeding operation table can realize no dust overflow during the manual feeding process. Unpackaged material enters the cone inside the feed table. The spilled dust is adsorbed by the strong negative pressure airflow during the overflow process, and then blocked by the filter element. The dry air passes through the filter element and is then exhausted by the fan.
2. Storage bin: It is a closed storage tank for storing bulk materials. The tank is equipped with a material level system, which can display the position and quantity of materials. A hole breaking device relieves the firmness caused by the material being deposited for too long. When used in conjunction with a screw conveying pump, the material can be conveyed to different locations. The tank body is easy to install, safe and reliable. It is an ideal bulk raw material storage tank for various batching plants.
3. Arch-breaking vibration device: by installing the arch-breaking plate in the warehouse and connecting the vibration device to the arch-breaking plate, the arch-breaking plate can vibrate effectively when the materials in the warehouse are arched, which can make the arch-breaking plate bonded to the arch-breaking plate. When the material on the plate is loose, the static friction coefficient between the material, the broken arch plate and the material is converted into the kinetic friction coefficient, so as to activate the arching material and make it fall, so as to achieve the purpose of breaking the arch.
4. Dust removal system: the top of the dust collector is a dust removal box, the bottom is a storage box, and the fan is a reverse suction fan. It mainly absorbs the wood powder produced by the wooden door processing machine, ensures the hygiene of the production workshop, creates a good working environment for workers, and protects the environment.
| Model | Dust fan power(KW) | Motor Power(KW) | Screen mesh | Dust filter specifications |
| TLZ-1 | 0.75 | — | Customizable | 0.5μm polyester film*1 |
| TLZ-2 | 1.1 | 0.07 | Customizable | 0.5μm polyester film*2 |
| TLZ-3 | 1.5 | 0.12 | Customizable | 0.5μm polyester film*4 |
| Model | 800 | 1000 |
| Sieving area(m2) | 0.42 | 0.64 |
| Motor power(kw) | 2*0.18 | 2*0.25 |
| Motor speed(r.p.m) | 1460 | 1460 |
| Dynamic load(N) | 400 | 500 |
| Static load(N) | 1500 | 2500 |
| Exciting force(kN) | 2.5*2 | 5*2 |
| Fan speed(r.p.m) | 2900 | 2900 |

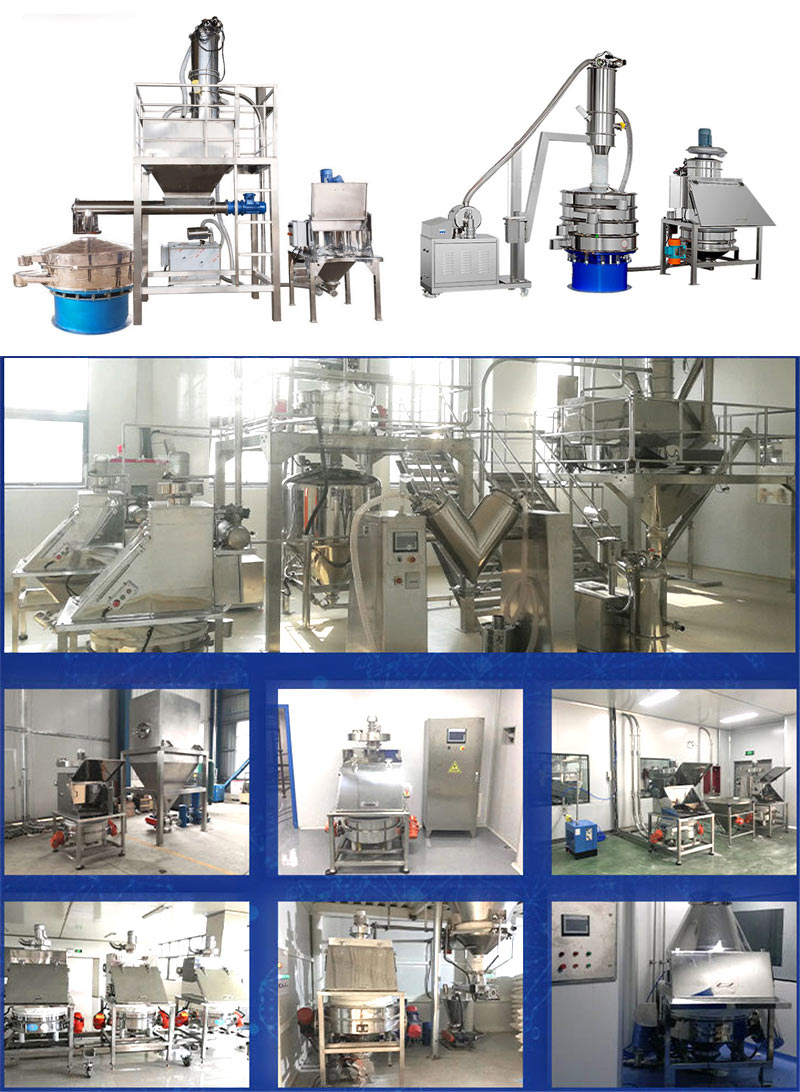

Dust-free feeding station is suitable for unpacking, feeding, screening and unloading of small bags of materials in the food, pharmaceutical, chemical and metallurgical industries, especially for manual feeding and pre-screening of powder materials. It can prevent material dust from flying everywhere.
The working principle is that the vertical motor is used as the excitation source.
The ultrasonic sieve deblinding system of the ultrasonic vibrating screen
