Enhance your productivity
5 tons per hour processing capacity work so great.
Natural Silica Seal
No dust pollution and flying powders any more.
Continuous operation
Can be easily working 24 hours.

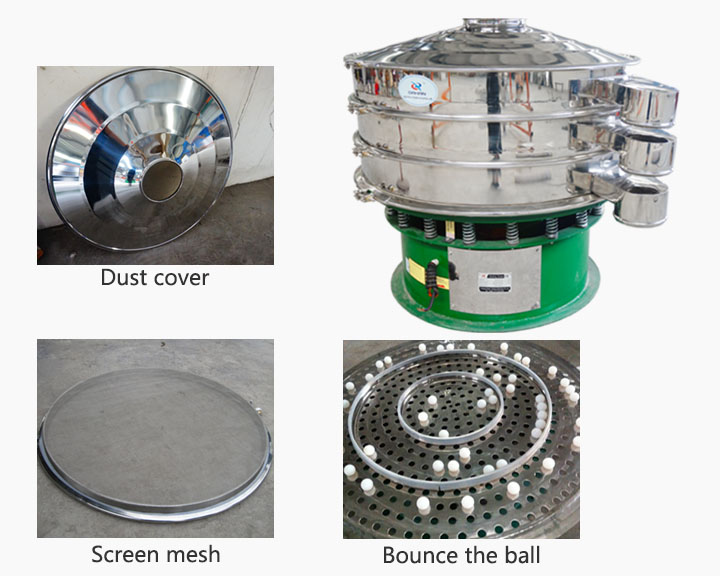

Easy replace the mesh
Very short times to replace the mesh about 3 minutes
Fits into smaller spaces
These vibrating screens can fit easily into existing installations and areas of limited headroom
Ability to work maneuverably
Selection of multi-layer screening and selection of various composition materials
Properties of the powder materials, such as powder density
Demands on the screening accuracy and performance
Throughput
Possible installation mass
Product to screen
for exmaple:
| steamed bread | spices | stone |
| petroleum coke | paint | feed |
| pellets | metal powder | copper pwder |
Technical parameters are provided below! Customization services are also ready for you to contact.
| Model | Diameter mm | Screen area m | Screen size（mesh） | Feeding granularity mm |
| DH-600 | Φ600 | 0.24 | 2-500 | <Φ10 |
| DH-800 | Φ800 | 0.45 | 2-500 | <Φ15 |
| DH-1000 | Φ1000 | 0.67 | 2-500 | <Φ20 |
| DH-1200 | Φ1200 | 1.0 | 2-500 | <Φ30 |
| DH-1500 | Φ1500 | 1.6 | 2-500 | <Φ30 |
| DH-1800 | Φ1800 | 2.43 | 2-500 | <Φ30 |
| DH-2000 | Φ2000 | 3.01 | 2-500 | <Φ30 |
