price:$5,800.00(1-4 Sets) $5,770.00(5-9 Sets) $5,740.00(>=10 Sets)
Power: 0.18-2.2kw
Siftering diameter: 350-1720mm (as required)
Sifter mesh: 2-500 mesh (according to demand)
Sifter layers: 1-5 layers (as required)
Processing capacity: 100-3300kg/h (according to demand)
Machine material: 304/316 stainless steel
Applicable materials: Allspice, Cardamom, Cayenne, Cinnamon, Fennel Seed and other granular or powder spices

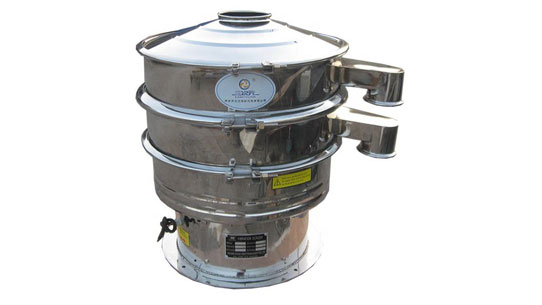

Spices Vibrating Sifter can select crushed spice powder or spice granules to remove impurities that affect the quality of spices or particles that do not meet the size requirements, and is used for fine processing of spices that need to be mixed or before packaging. Improve quality.
The Spices Vibrating Sifter is made of SS304 stainless steel. The side wall of the machine is polished and polished inside the sieve box to avoid the adhesion of oily spices. At the same time, the overall smooth circular design of the machine can also ensure that the processed spices are discharged more smoothly.

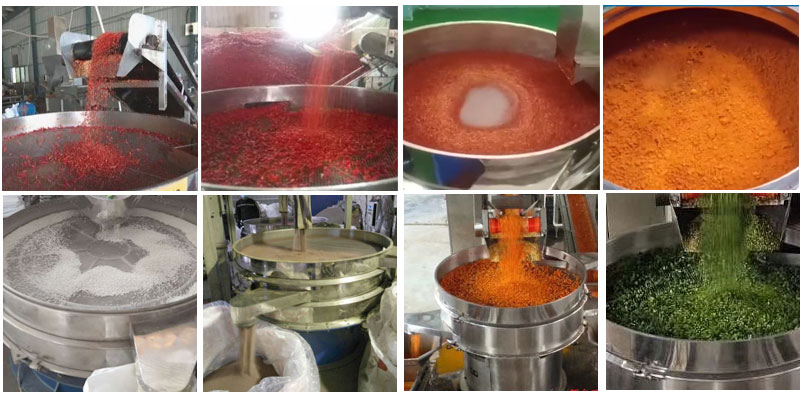

Spices Vibrating Sifter can be used to process cinnamon, fennel, paprika and many other spices.
The role in powdered spices: impurity removal, homogenization, and finer spice powder; such as cinnamon powder, chili powder, curry powder, etc.
The role in granular spices: impurity removal, grading, and improving the quality of spices; such as nutmeg, chili powder, cumin, fennel, etc.
Spices Vibrating Sifter is mainly used between spice peeling and grinding equipment and packaging equipment.

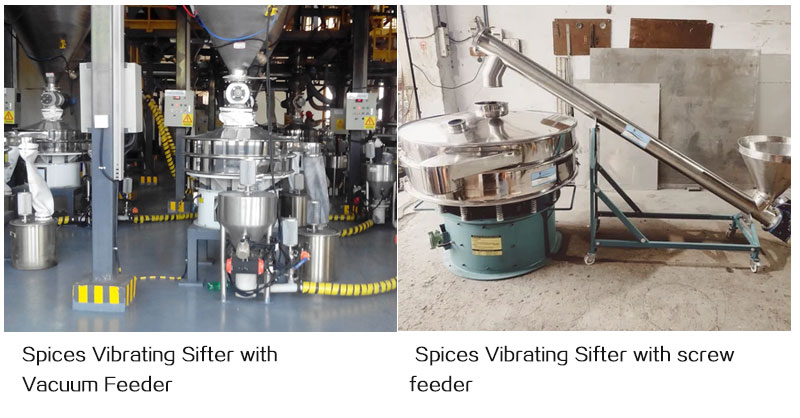

After the primary removal of stones, branches and leaves, the raw spice plants are cleaned and ground into spice powder by grinding equipment, and then fed into the Spices Vibrating Sifter through vacuum feeders, feeding stations, spirals and other equipment.
The Spices Vibrating Sifter can complete the removal of impurities in the spices and divide the spices into accurate grades according to the particle size to improve the quality of the spices. Finally, the finely screened spice powder enters the packaging machine to complete packaging and wait for sales.
video
on site
Spice Handling Difficulties
1. Some spices are oily and easy to adhere to the side wall and Sifter of the Sifter;
2. Most of the spices are used in food, and some are used in medicine or cosmetics, which have high hygiene requirements;
3. Most of them are powders, which are easy to scatter and have strong irritating odor;
4. Some irregular spice particles are easy to block the Sifter.
Spices Vibrating Sifte Solutions/Advantage
Facing the most complicated problem of sticking and clogging in spice screening, we give the following solutions
Silicone bouncing ball cleaning net for food: the price is low, and the net cleaning effect is better, but if the sieving mesh required for spices is too fine, the sieve is very light and thin, which may easily cause the sieve to break and increase the maintenance cost. In addition, although silicone bouncing balls are non-toxic and harmless, they may wear out after long-term use, and spices are not suitable for strict quality requirements.
Ultrasonic deblinding device: high price, excellent net cleaning effect, almost completely avoid spice blockage, will not cause damage to the screen, completely affect the spice itself, long service life of the deblinding device.
In addition, Spices Vibrating Sifte has the following advantages for spice treatment:
1. The inside and outside of the machine are polished and polished, no hanging material or hidden material, easy to clean;
2. 304 or 316L stainless steel material, safe and hygienic, no rust, in line with food or drug standards;
3. The fully sealed design minimizes the escape of spices or volatilization of odors and reduces waste;
4. It can be used in the production line and adjusted according to the layout of the production plant.

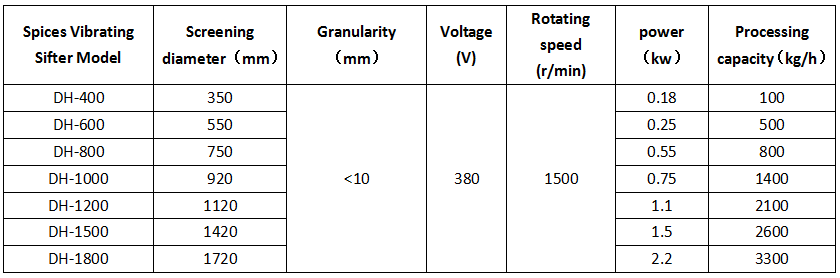

| Model | Diameter mm | Sifter area m | Sifter size（mesh） | Feeding granularity mm |
| DH-600 | Φ600 | 0.24 | 2-500 | <Φ10 |
| DH-800 | Φ800 | 0.45 | <Φ15 | |
| DH-1000 | Φ1000 | 0.67 | <Φ20 | |
| DH-1200 | Φ1200 | 1.0 | <Φ30 | |
| DH-1500 | Φ1500 | 1.6 | <Φ30 | |
| DH-1800 | Φ1800 | 2.43 | <Φ30 | |
| DH-2000 | Φ2000 | 3.01 | <Φ30 |

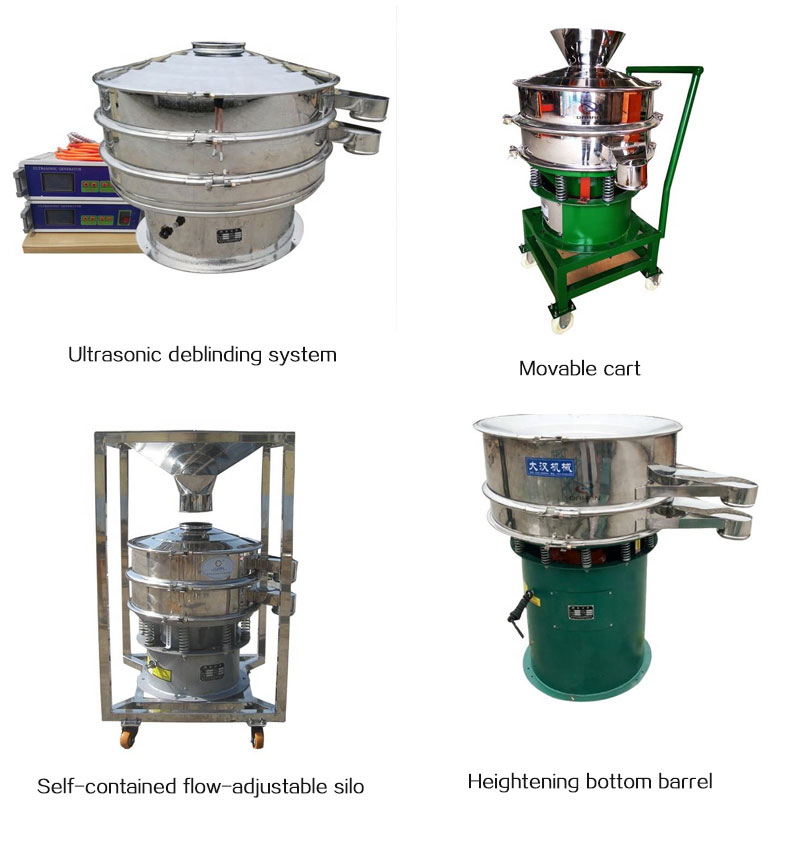

Ultrasonic deblinding system: used to process extremely fine spice powders, the ultrasonic deblinding system can minimize your spice powder from clogging the mesh, and the screening output can be increased by at least 40%.
Movable cart: If your spice storage locations are scattered or the spice processing scene is constantly changing, then the design of the mobile cart will definitely help you solve the troublesome machine handling problem.

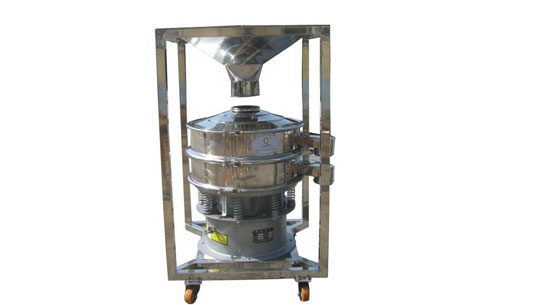

Self-contained flow-adjustable silo: It has two functions of storage and buffering. There is an adjustable valve design under the silo, which can adjust the flow of spices. The gravitational potential energy is reduced, avoiding the increase in the probability of damage caused by the direct impact of the material on the screen.
Heightening bottom barrel: It is used to adapt to the screening of spices between floors or to use with higher feeding equipment.
