More refined performance
Ultrasonic generator has huge ultrasonic acceleration and keeps the suspension of the material
More precise segmentation
Electricity, high fineness, high density and light specific gravity materials screening easily.
Cheap price
Factory direct sales with no middleman and we can negotiate the price until you are satisfied.
Great sealing
Enclosed screening means no dust and other pollution.
Excellent mesh material
Uniform mesh design, smooth cutting experience, excellent material quality, and optional
Lowers noise levels
A solid rubber suspension gives the machine a quiet operation.
Determine the number and characteristics of material items
Material mesh number in more than 300 mesh selection of ultrasonic vibrating screen, 300 mesh selection of linear vibrating screen, rotary vibrating screen.
Determine the output

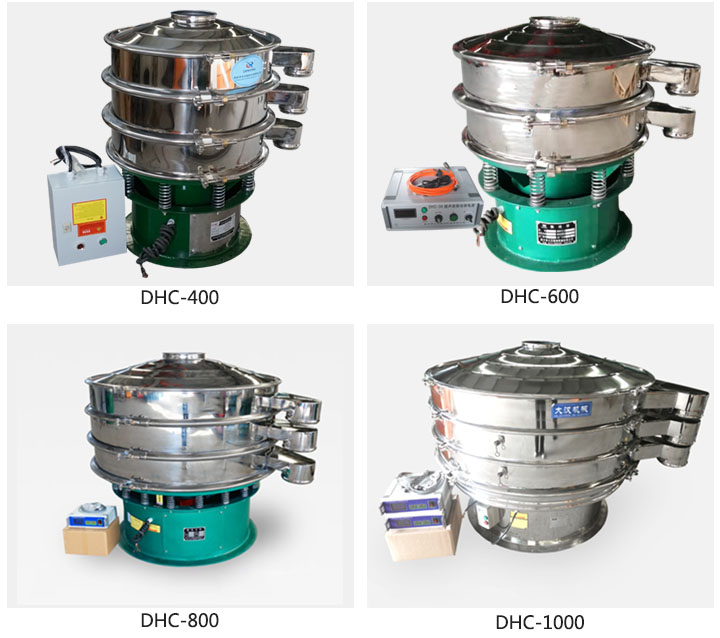

Models are DHC400, DHC600, DHC800, DHC1000, DHC1200, DHC1500, DHC1800 and so on.
Screen material
Material can be divided into two kinds: the material contact part is 304 stainless steel material, the machine 304 stainless steel material.
Accessories to choose

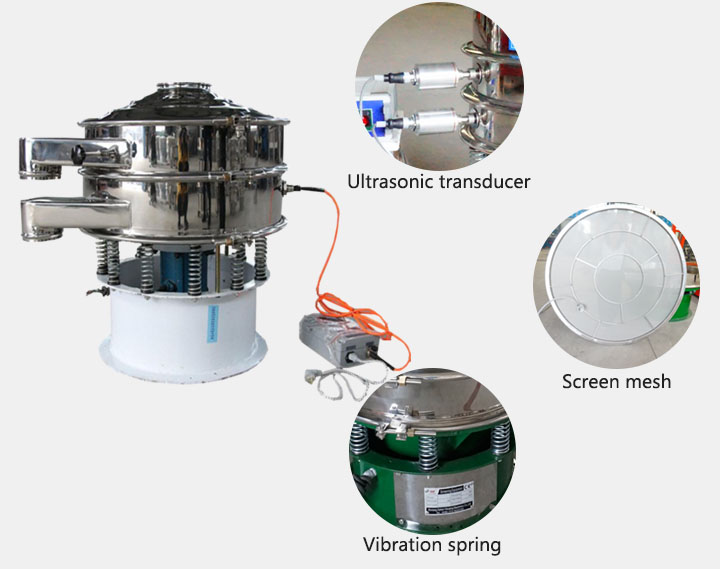

The main parts of ultrasonic vibrating screen are: ultrasonic power supply, ultrasonic transducer, vibration motor.
for exmaple:
| soybean | megnesia |
| rubber | fertilizer |
| starch | pigments |
Technical parameters are provided below! Customization services are also ready for you to contact.
| Model (mm) | Ordinary screening machine | Ultrasonic vibrating screen | Mesh |
| Screen mesh | |||
| Φ1000 | 500 | 500 | 1500KG/H |
| Φ1000 | 600 | 600 | 30KG/H |
| Φ1000 | 400 | 100 | 120-150KG/H |
| Φ500 | 400 | 400 | Screen out 20% in 15 minutes.Fine and effective classification can be carried out in fine workmanship. |
| 325 | 400 | Screen once to meet the requirements | |
| Φ450 | 300 | 300 | 6.9% residual sieve in 30 minutes |
| Model | Screen diameter | Screen specification | Power (kw) |
| DHC-400 | Φ350 | 80-600 meshes | 0.18 |
| DHC-600 | Φ550 | 0.25 | |
| DHC-800 | Φ750 | 0.55 | |
| DHC-1000 | Φ920 | 0.75 | |
| DHC-1200 | Φ1120 | 1.1 | |
| DHC-1500 | Φ1420 | 1.5 | |
| DHC-1800 | Φ1720 | 2.2 |
